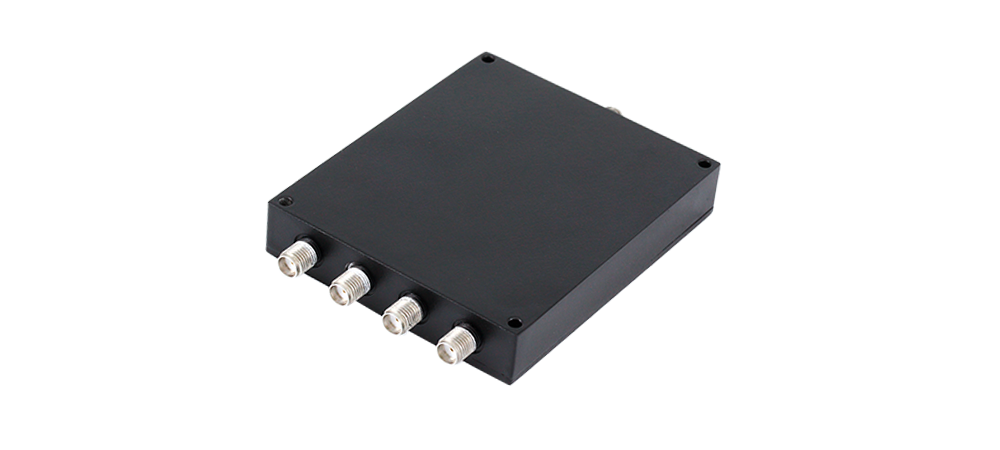

Power Divider

Part No: PD69860-4-SF

Power Divider, 4-Way, 698 MHz to 6000 MHz, SMA(F)

# of Ways

4

Freq. Range

0.698 to 6 GHz

Insertion Loss

7.8 dB

Isolation

18dB

Input VSWR(:1)

Input 1.45 : 1

Output VSWR(:1)

Output 1.30 : 1

Amp. Unbalance

±0.4dB

Phase Unbalance

±4 deg

Power Handling

20 W

Reverse Power

1 W

Connector

SMA (f)

Material

Finishing

Operating Temp.

-55 ℃to +85 ℃

Size (Body)

Impedance

50 Ohm
