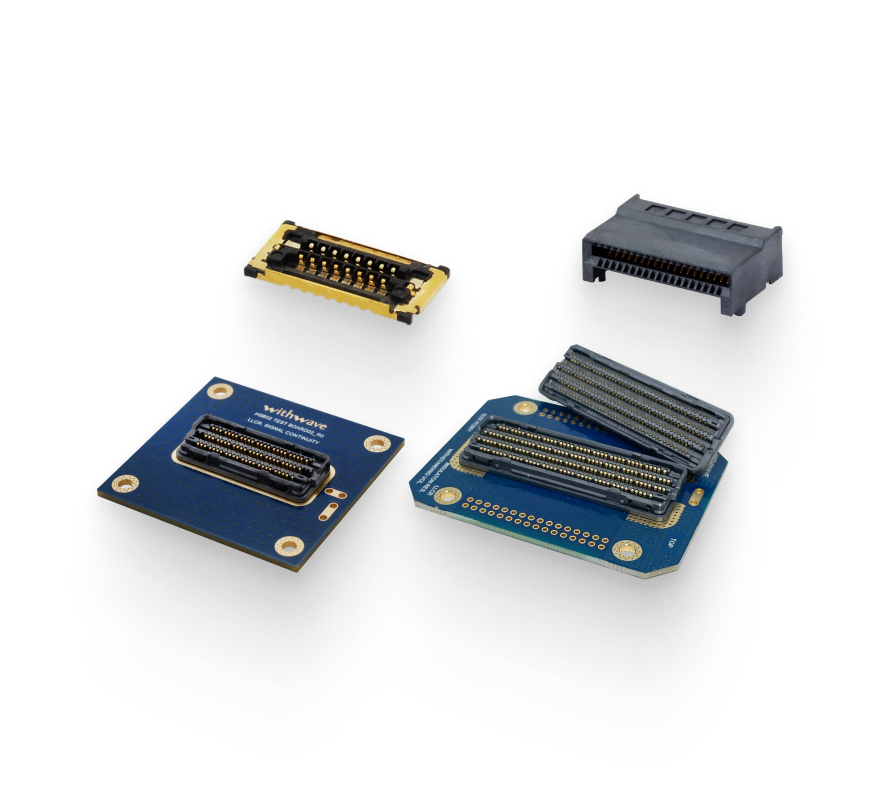

High Speed Connectors
WithWave’s High-Speed Connectors have excellent higher-bandwidth applications: 56 Gbps NRZ and 112 Gbps PAM-4.
They have high pin counts (total 292 and 418 contacts, respectively) and pin pitch (0.9 mm and 1.0 mm,
respectively) according to product types (HSB01, HSB00) based on differential pair 100 Ohms(or 92 Ohms)
nominal impedance. These products are designed based on Surface Mount BGA Pin design technology.
Features
• Higher Bandwidth Application: 56Gbps NRZ
• 24 Differential Pairs
• Pitch Interval : 0.9 mm x 1.5 mm
• Differential pair 92 Ohms • nominal impedance
• Surface mount BGA pin design
• External Dimensions
✓ HSW00_M120R: 38.3 mm(W) x 22.0 mm(D) x 10.45 mm(H)
✓ HSW00_M120S: 38.3 mm(W) x 18.5 mm(D) x 16.55 mm(H)
• Coaxial Cable Assembly
Applications
• Test and Measurement
• 28/56 Gbps Application
| Part Number | Freq. Max [GHz] | Pitch Interval [mm] | Pin Counts | Size [mm] | Stack Height [mm] | Shape | Impedance [Ohms] |
|---|---|---|---|---|---|---|---|
| HMB00_M016S00H006A | 50 | 0.35 X 1.5 | 16 | 5.0 X 2.48 X 0.48 | 0.6 | Straight | 50 |
| Part Number | Data Rate [Gbps] | Pitch Interval [mm] | Pin Counts | Size [mm] | Stack Height [mm] | Shape | Impedance [Ohms] |
|---|---|---|---|---|---|---|---|
| HSB02_M120S01H050A | 56 | 0.9 x 1.5 | 120 | 32.0 x 12.6 x 3.75 | 5 | Straight | 92 |
| HSB01_M292S01H050A | 56 | 0.9 x 1.5 | 292 | 48.0 x 15.6 x 3.75 | 5 | Straight | 92 |
| HSB00_M418S01H084A | 56 | 1.0 x 2.0 | 418 | 35.6 x 26.6 x 6 | 8.4 | Straight | 100 |
| Part Number | Data Rate [Gbps] | Pitch Interval [mm] | Pin Counts | Size [mm] | Stack Height [mm] | Shape | Impedance [Ohms] |
|---|---|---|---|---|---|---|---|
| HSE00_R038R03H060A | 28 | 0.8 | 38 | 18.2 x 11.3 x 6.05 | 6.05 | Right Angle | 100 |
| Part Number | Data Rate [Gbps] | Pitch Interval [mm] | Pin Counts | Size [mm] | Stack Height [mm] | Shape | Impedance [Ohms] |
|---|---|---|---|---|---|---|---|
| HSB02L_M120S01H050A | 56 | 0.9 x 1.5 | 120 | 32.0 x 12.6 x 3.75 | 5 | Straight | 92 |
| HSB03_M064S01H153A | 56 | 0.6 x 2.1 | 64 | 26.6 x 8.7 x 8.5 | 15.3 | Straight | 100 |
| HSB03_M064R01H085A | 56 | 0.6 x 2.1 | 64 | 26.6 x 13.75 x 8.55 | 8.55 | RightAngle | 100 |
| Part Number | Data Rate [Gbps] | Pitch Interval [mm] | Pin Counts | Size [mm] | Assembled Cable Type | Shape | Impedance [Ohms] |
|---|---|---|---|---|---|---|---|
| HSW00_M120S01H050A | 56 | 0.9 X 1.5 | 120 | 38.3 x 18.5 x 16.55 | 32AWG | Straight | 92 |
| HSW00_M120R01H050A | 56 | 0.9 X 1.5 | 120 | 38.3 x 22.0 x 10.45 | 32AWG | Right Angle | 92 |
| HSW03_M064S01H153A | 56 | 0.6 X 2.1 | 64 | 26.0 x 10.4 x 15.7 | 32AWG | Straight | 100 |
