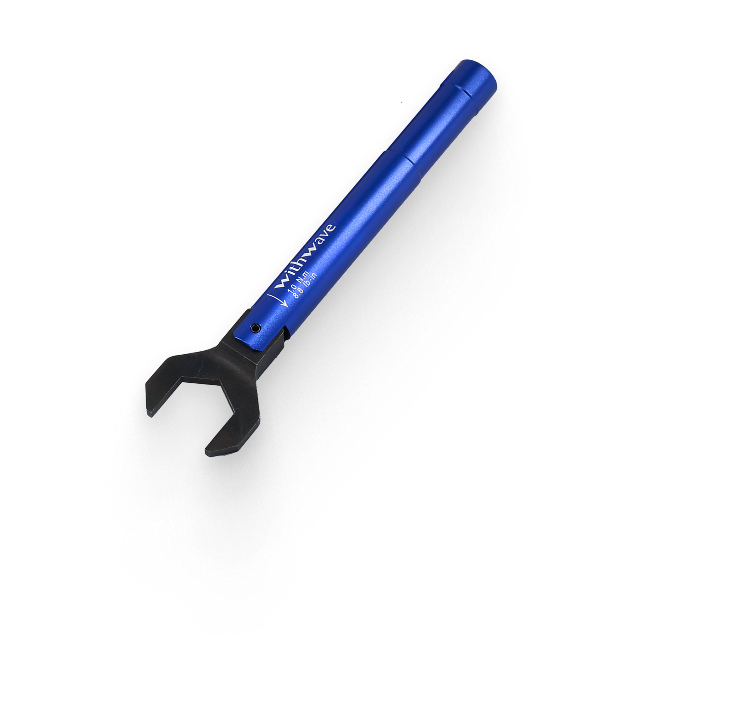

Torque Wrenches
WithWave’s Toque Wrench series provides accurate mating force when assembling and disassembling
various types of RF coaxial connectors, such as SMA, 3.5 mm, 2.92 mm, 2.4 mm, and N-type.
Features
• SMA • 2.4mm • 2.92 mm • 3.5mm types & N-type
• Screwing Type
• Broad selection of RF connector tools
Applications
• Field install and testing
• Cable testing in Lab environment
• Applying accurate torque
Products List
Torque Wrenches
| Part Number | Torque Range [Nm] | Size [mm] | Orifice Dia. [mm] | Weight [Kg] | Color | Applied to |
|---|---|---|---|---|---|---|
| TW-01 | 0.9 ± 0.1 (8 in-lbs) | 155 X 15 | 8.2 ± 0.1 | 0.2 | Blue | SMA/3.5mm/ 2.92mm/2.4 mm |
| TW-02 | 1.0 ± 0.1 (8.8 in-lbs) | 158 X 15 | 20 ± 1.0 | 0.2 | Blue | N-Type |
