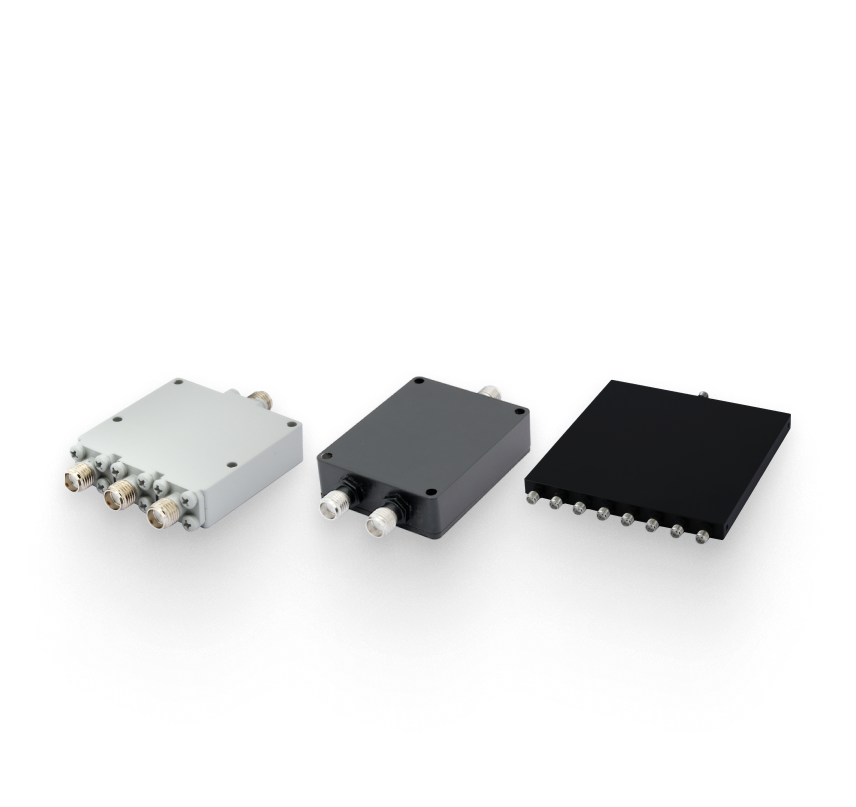

Power Dividers
WithWave’s Power Dividers offer various options, such as frequency range, number of ports, and power handling.
Features
• SMA • 2.92mm (Male to Female)
• 2-Way, 3-way, 4-way & 2-Way to 40 GHz!
• 50 Ohms
Applications
• Test and Measurement
Products List
Power Dividers
| Part Number | # of Ways | Freq. Low [GHz] | Freq. High [GHz] | Insertion Loss Max. [dB] | Isolation Min. [dB] | Reverse Power Max. [W] | Connector |
|---|---|---|---|---|---|---|---|
| PD1030-8-SF | 8 | 1 | 3 | 10.8 | 18 | 2 | SMA (f) |
| PD0560-2-SF | 2 | 0.5 | 6 | 4 | 18 | 2 | SMA (f) |
| PD2040-2-SF | 2 | 2 | 4 | 3.5 | 20 | 1 | SMA (f) |
| PD4080-2-SF | 2 | 4 | 8 | 3.8 | 18 | 2 | SMA (f) |
| PD00400-2-KF | 2 | 40 | 40 | 7.5 | 12 | 1 | 2.92mm (f) |
| PD60180-2-SF | 2 | 6 | 18 | 3.6 | 18 | SMA (f) | |
| PD150265-2-SF | 2 | 15 | 26.5 | 3.8 | 18 | 0.5 | SMA (f) |
| PD2060-3-SF | 3 | 2 | 6 | 5.6 | 18 | 1 | SMA (f) |
| PD60180-3-SF | 3 | 6 | 18 | 5.8 | 18 | 1 | SMA (f) |
| PD1018-4-SF | 4 | 10 | 18 | 7 | 18 | SMA (f) | |
| PD69860-4-SF | 4 | 0.698 | 6 | 7.8 | 18 | 1 | SMA (f) |
| PD0560-4-SF | 4 | 0.5 | 6 | 7.8 | 18 | 2 | SMA (f) |
| PD0560-8-SF | 8 | 0.5 | 6 | 11.8 | 18 | 2 | SMA (f) |
