Automatic Calibration Modules

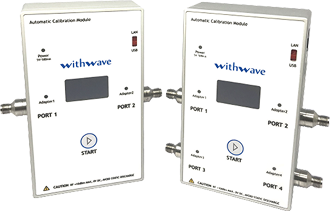

WithWave’s Automatic Calibration Modules offer a fast, easy, and cost-effective way to calibrate various Vector Network Analyzers (VNAs) for RF testing, supporting multiple VNA models and simplifying calibration with a One-Push START button and internal coefficient calculation, making them ideal for production and quality testing.
Features
• One-Push button Calibration
• Automatic VNA port connection detection
• Various VNA Compatibility
- Keysight: PNA, ENA series
- Rohde & Schwarz: ZNA, ZNB, ZNBT, ZVL, ZVT, ZNLE series
- Anritsu: ShockLine series, VectorStar series
- Copper Mountain Tech: Planar, Compact, Cobalt series
- Transcom: TVNA series
Applications
• Automatic VNA Calibration
• Test & Measurement
Procedure Guide: Two-Port Calibration (with Keysight Vector Network Analyzer)
Procedure 1: USB Diver Installation
Procedure 2: Ready for Calibration
Procedure 3A: Calibration
Procedure 3B: Zoom View
Procedure Guide: Four-Port Calibration (with Rohde & Schwarz Vector Network Analyzer)
Procedure 1: USB Diver Installation
Procedure 1: USB Diver Installation
Procedure 1: USB Diver Installation
Procedure 1: USB Diver Installation
Products List
Automatic Calibration Modules
| Part Number | Description | # of Ports | Freq. Low [KHz] |
Freq. High [GHz] |
Connectors |
|---|---|---|---|---|---|
| W1202A | Automatic Calibration Module, 2-port 100 KHz to 12 GHz, 3.5mm (Female) | 2 | 100 | 12 | 3.5mm (f) |
| W1202B | Automatic Calibration Module, 2-port 100 KHz to 12 GHz, N (Female) | 2 | 100 | 12 | N (f) |
| W1204A | Automatic Calibration Module, 4-port 100 KHz to 12 GHz, 3.5mm (Female) | 4 | 100 | 12 | 3.5mm (f) |
| W1204B | Automatic Calibration Module, 4-port 100 KHz to 12 GHz, N (Female) | 4 | 100 | 12 | N (f) |
| W1802A | Automatic Calibration Module, 2-port 100 KHz to 18 GHz, 3.5mm (Female) | 2 | 100 | 18 | 3.5mm (f) |
| W1802B | Automatic Calibration Module, 2-port 100 KHz to 18 GHz, N (Female) | 2 | 100 | 18 | N (f) |
| W1804A | Automatic Calibration Module, 4-port 100 KHz to 18 GHz, 3.5mm (Female) | 4 | 100 | 18 | 3.5mm (f) |
| W1804B | Automatic Calibration Module, 4-port 100 KHz to 18 GHz, N (Female) | 4 | 100 | 18 | N (f) |
| W2602A | Automatic Calibration Module, 2-port 100 KHz to 26.5 GHz, 3.5mm (Female) | 2 | 100 | 26.5 | 3.5mm (f) |
| W2604A | Automatic Calibration Module, 4-port 100 KHz to 26.5 GHz, 3.5mm (Female) | 4 | 100 | 26.5 | 3.5mm (f) |
