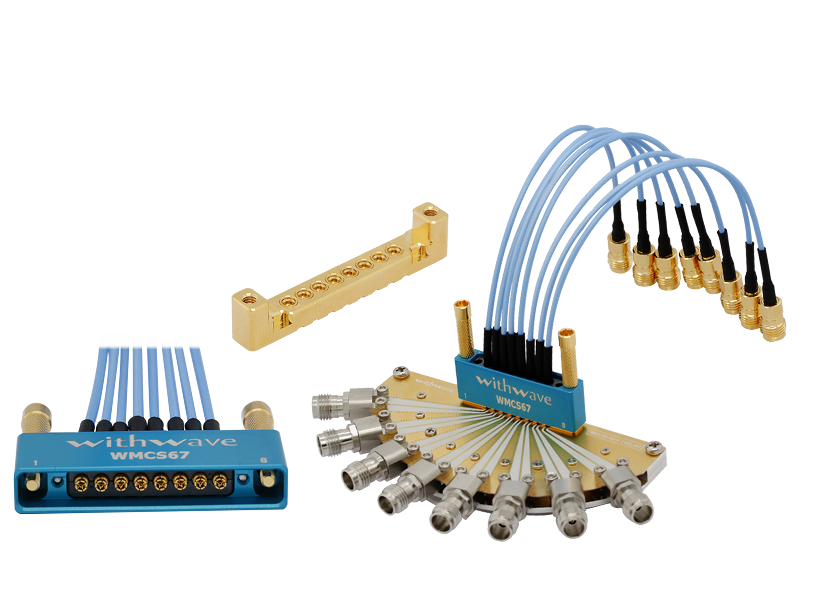

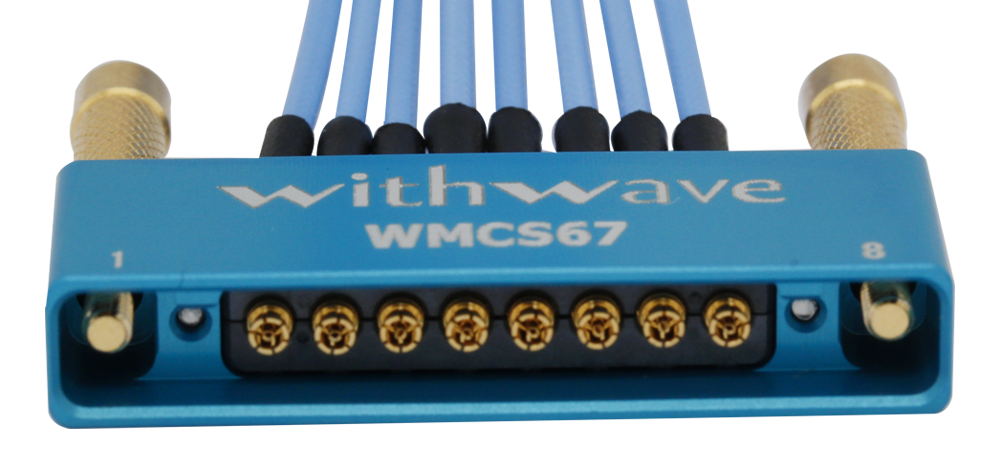

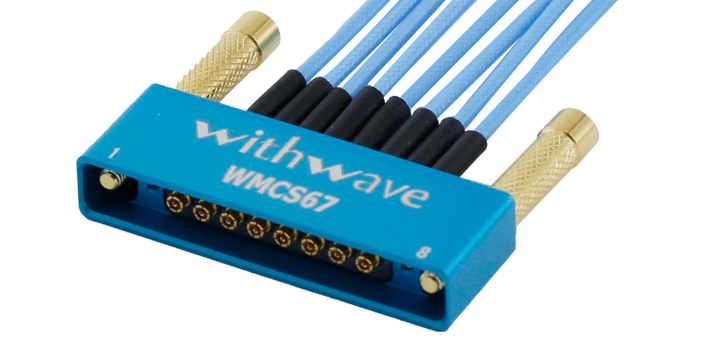

Multi-Channel SMPS Cable Assembly Solderless Vertical & Edge Mount Type
WithWave’s Multi-Channel SMPS Cable Assemblies (WMCS Series) provide a wide range of
multiple coax connectors and flexible cable assemblies in 26.5, 40, 50, and 67 GHz configurations
based on precision array design and superior high-frequency cabling solutions.
The WMCS comprises a single housing in 2, 4, and 8 channels. It can be combined with the PCB
in compressed form, which provides a lower total cost of testing components without the soldering procedure.
Features
• Frequency Range: DC to 26.5 • 40 • 50 & 67 GHz
• Solderless Vertical and Edge Mount type (SMPS)
• 1 X 2 • 1 X 4 • 1 X 8 Channels
Specifications
PCB Mount Type
Vertical Mount
Edge Mount
Frequency Range
26.5 GHz
40 GHz
50 GHz
67 GHz
26.5 GHz
40 GHz
50 GHz
67 GHz
Opposite Connector Type
SMA
2.92mm
2.4mm
1.85mm
SMA
2.92mm
2.4mm
1.85mm
VSWR(:1)
1.4
1.5
1.6
1.6
1.4
1.5
1.6
1.6
# of Channels
1 X 2 • 1 X 4 • 1 X 8
Contact Interval (Pitch)
2.54 mm [0.1"]
Coaxial Cable Diameter
0.047"
Min. Cable Length
100 mm [3.94"]
Operating Temperature
-55℃ ~ 125℃
Test Condition
- Remark
- Remark

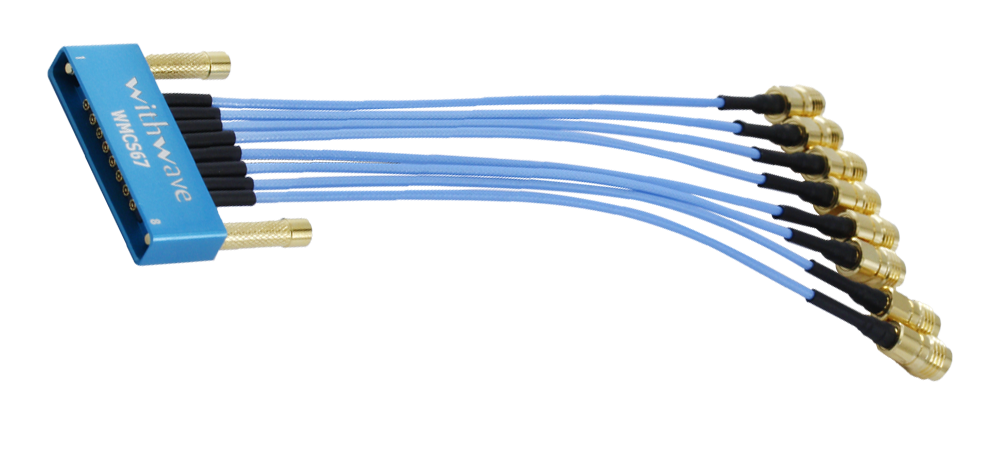

Multi-Channel SMPS Cable Assembly Configuration (WMCS to Coaxial Connector)
Series
WMCS
Max. Frequency Range
Screw Handles (Side 1)
# of Channels
Pitch(mm)
1: 2.54
Coaxial Connectors (Side 2)
Cable Length(mm)
Phase Matching
# of Phase Matched Cable Set
Part Number Set up
WMCS
WMCS
-
-
-
1: 2.54 mm
-
Cable Length: - mm
-
-

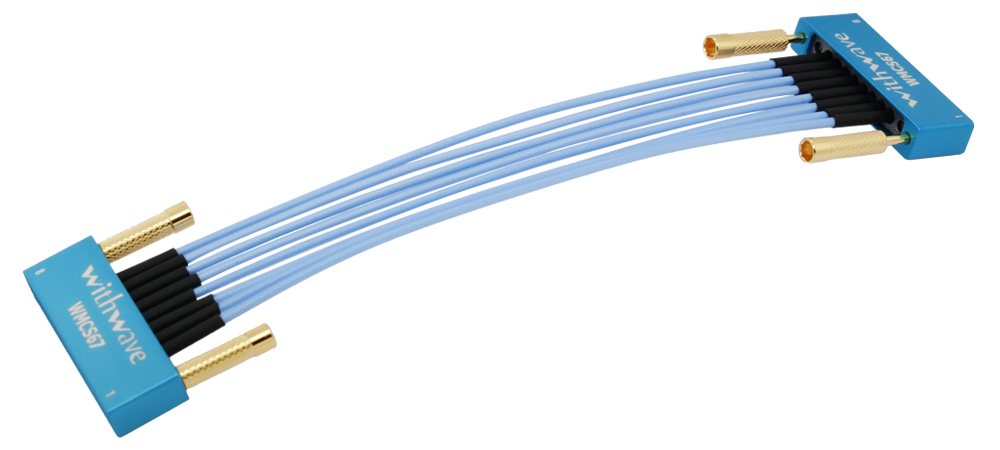

Multi-Channel SMPS Cable Assembly Configuration (WMCS to WMCS: Jumper Type)
Series
WMCS to WMCS
Max. Frequency Range
67 GHz
Screw Handles (Both sides)
# of Channels
Pitch(mm)
1: 2.54
Cable Length(mm)
Phase Matching
# of Phase Matched Cable Set
Part Number Set up
WMCS67-WMCS67
WMCS to WMCS
67 GHz
-
-
1: 2.54 mm
Cable Length: - mm
-
-

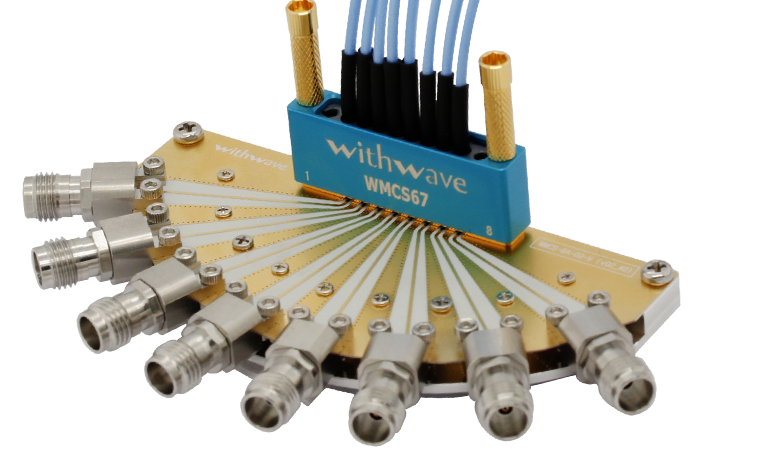

Vertical Board Connector
*mated Multi-Channel SMPS Cable Assembly
Edge Mount Board Connector
*mated Multi-Channel SMPS Cable Assembly
