Power Divider

Part No: PD00400-2-KF

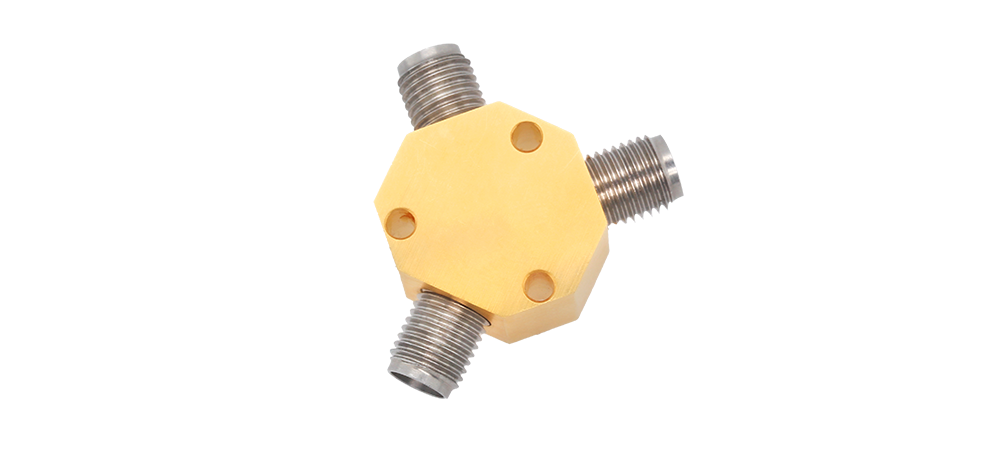

Power Divider, 2-Way, 40 GHz, 2.92 mm(F)

# of Ways

2

Freq. Range

DC to 40 GHz

Insertion Loss

7.5 dB

Isolation

12dB

Input VSWR(:1)

Input 1.5 : 1

Output VSWR(:1)

Output 2.5: 1

Amp. Unbalance

±0.4 dB

Phase Unbalance

±5 degree

Power Handling

10 W

Reverse Power

1 W

Connector

2.92mm (f)

Material

Finishing

Operating Temp.

-40 ℃to +85 ℃

Size (Body)

Impedance

50 Ohm
