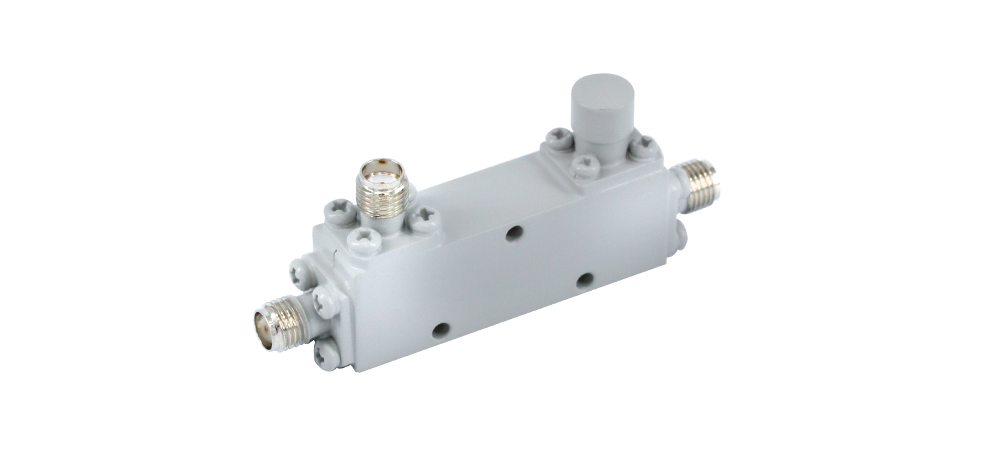

Directional Coupler

Part No: BC20180-30-SF

Directional Coupler, 2 to 18 GHz, SMA(F), 30 dB

Freq. Range

2 ~ 18 GHz

Coupling

30 ± 1.0 dB

Insertion Loss

0.5 dB

Directivity

14 dB Typ

Power Input

50 W

Peak Power Input

1 K

Connector(s)

SMA (f)

VSWR, Primary

1.30: 1 (Typ.)

VSWR, 2nd

1.25: 1 (Typ.)

Impedance

50 Ohm

Operating Temp.

-40 ℃ to +85 ℃

Remark
