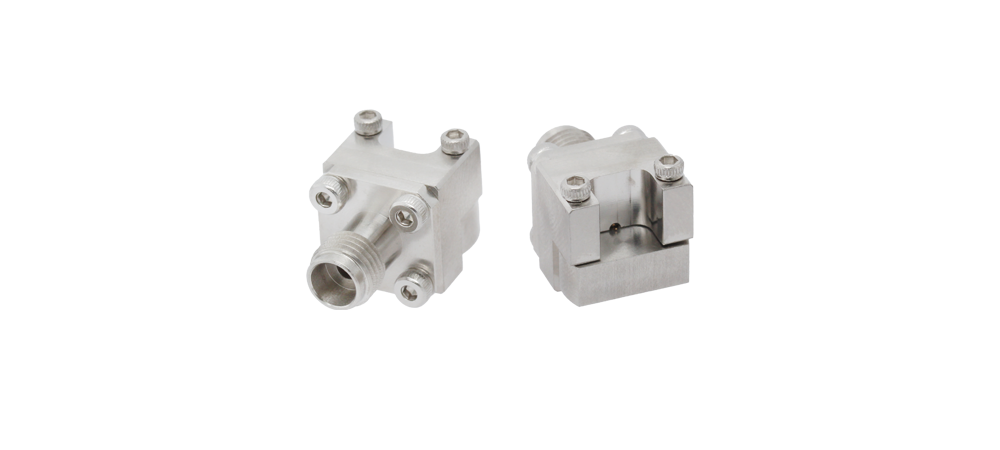

End Launch Connector, Standard profile

Part No: EL02FS001

2.4 mm, Female, 50 GHz, Solderless type

RF Series

2.4mm

Frequency, [GHz]

50

Gender

Jack [Female]

Orientation

Straight

Coupling

Threaded

Detent

Mounting Type

End Launch

Body Type

Family

Solderless

Body Finish

Passivated

Body Material

Stainless Steel

Operating Temp.

-40°C to +125°C

Remark 1

Standard Profile

Remark 2

Remark 3
