Hand formable Cable Assemblies_HF085_18GHz

Part No: HF085-SM1SM1-6inch

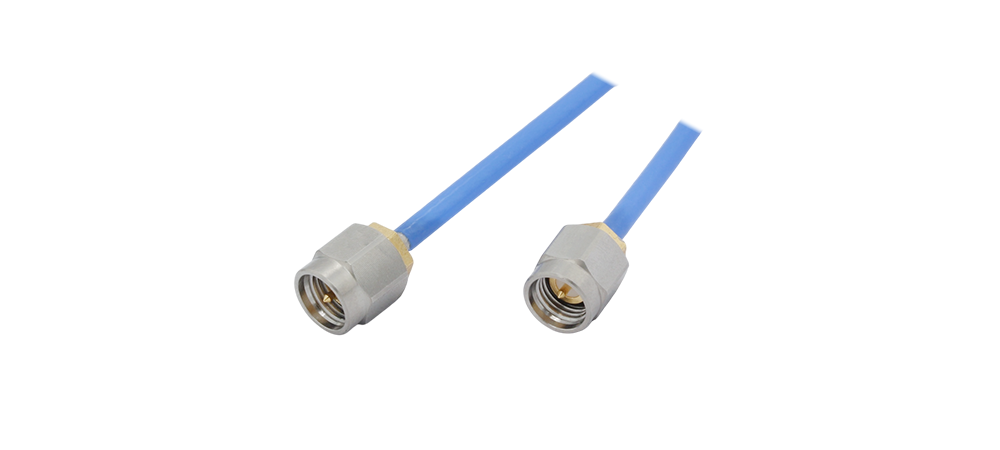

HF085 Cable Assembly, 18 GHz, SMA(M), SMA(M), 6inch

  • WithWave’s Hand formable Cable Series(HF085) are complete line of high performance flexible microwave cable assemblies.
  • The velocity propagation of this cable is 70 % and they have good insertion & return loss.
  • These cable assemblies with SMA male connectors have excellent RF performance up to 18 GHz.

Conn (#1)

SMA (M)

Body (#1)

Straight

Coupling (#1)

Threaded

Termination (#1)

Solder

Conn (#2)

SMA (M)

Body (#2)

Straight

Coupling (#2)

SMA (M)

Termination (#2)

Solder

Series (Cable Type)

Hand formable Cable Assemblies

Insertion Loss

VSWR (:1)

1.30 Max @ 18 GHz

Amplitude / Phase Stability

Center Conductor

Shielding Effectiveness

< -100 dB

Voltage Withstanding

Cable Diameter

2.60 mm

Operating Temp.

-40 ~ +125 ℃
Non-adhesive shrink tube

Remark 1

Remark 2

Remark 3

Design Assistance

Drawing
Drawing

Customer Support

Datasheet
Contact us
Contact us
