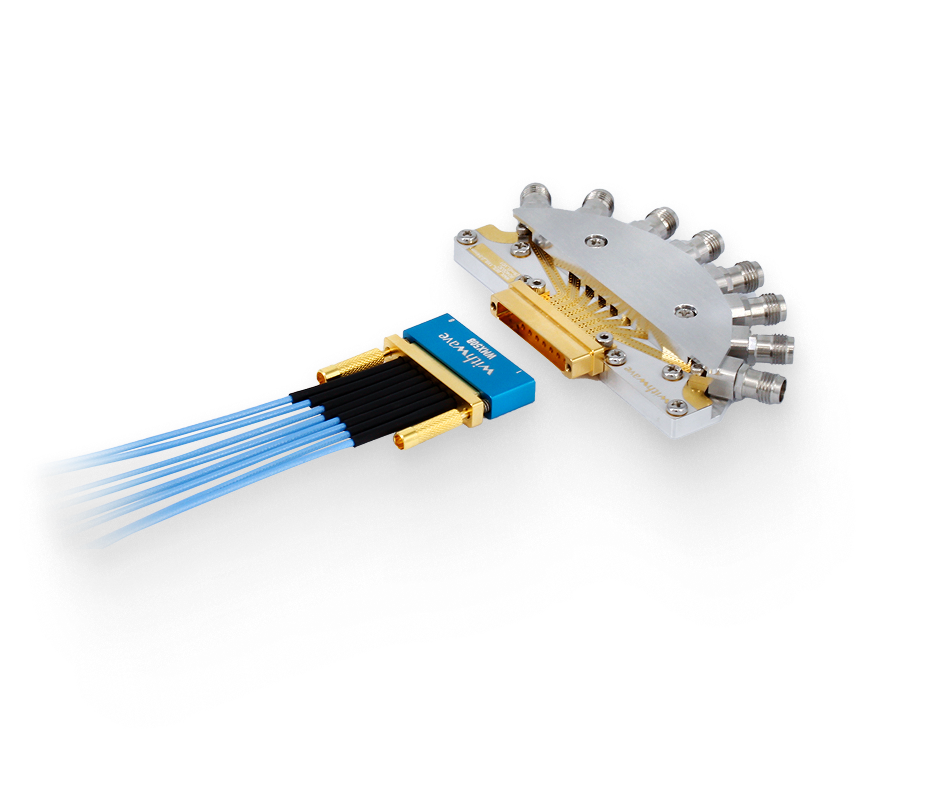

WMX Series™ High Speed & High Density Multicoax Cable Assembly - Board Edge Type
WithWave’s WMX Series™ High-Speed and high-density Multicoax Cable Assemblies, Board Edge
Socket Type(BES) provides a wide range of Multiple coax connectors and flexible cable
assemblies in 20, 40 and 50 GHz configurations based on precision array design and superior high-frequency cabling solutions.
The BES is an excellent signal integrity solution at the edge of the PCB for bench-top testing
and automated test equipment to meet the increasing demands of semiconductor test
equipment and optical testing industries.
Features
• Frequency Range: DC to 20, 40 & 50 GHz
• Excellent Insertion and VSWR performance
• Board edge Socket Contact type (Solderless pins)
• # of Channels: 1 X 8
• Contact Interval: 2.54 mm [0.1”]
Specifications
| Series | WMX20B | WMX40B | WMX50B |
|---|---|---|---|
| SERDES Characterization |
PAM4 20 Gbps |
PAM4 40 Gbps |
PAM4 50 Gbps |
| Frequency Range | 20 GHz | 40 GHz | 50 GHz |
| Opposite Connector Type | SMA | 2.92mm | 2.4mm |
| PCB Mount Type | • Board Edge Socket Guided Type | ||
| VSWR | 1.4:1 | 1.5:1 | 1.6:1 |
| # of Channels | • 1 X 8 | ||
| Contact Interval | • 2.54 mm [0.1”] | ||
| Coaxial Cable Diameter | 0.047" | ||
| Min. Cable Length | 150 mm [5.91”] | ||
| Operating Temperature | -55°C ~ 125°C | ||
Test Condition
- - Remark
- - Remark
Multi-Channel SMPS Cable Assembly Configuration (WMCS to Coaxial Connector)
| Series | WMCS | |
| Max. Frequency Range | ||
| # of Channels | ||
| Contact Interval (Pitch) | 1: 2.54 | mm |
| Opposite Connector Type | ||
| Cable Length |
|
mm |
Part Number Set up
WMCS
WMCS
-
-
1: 2.54 mm
-
Cable Length: - mm
Multi-Channel SMPS Cable Assembly Configuration (WMCS to WMCS: Jumper Type)
| Series | WMCS to WMCS | |
| Max. Frequency Range | ||
| # of Channels | ||
| Contact Interval (Pitch) | 1: 2.54 | mm |
| Cable Length |
|
mm |
Part Number Set up
WMCS
WMCS to WMCS
-
-
1: 2.54 mm
Cable Length: - mm
