Waveguide to Coaxial Adapters

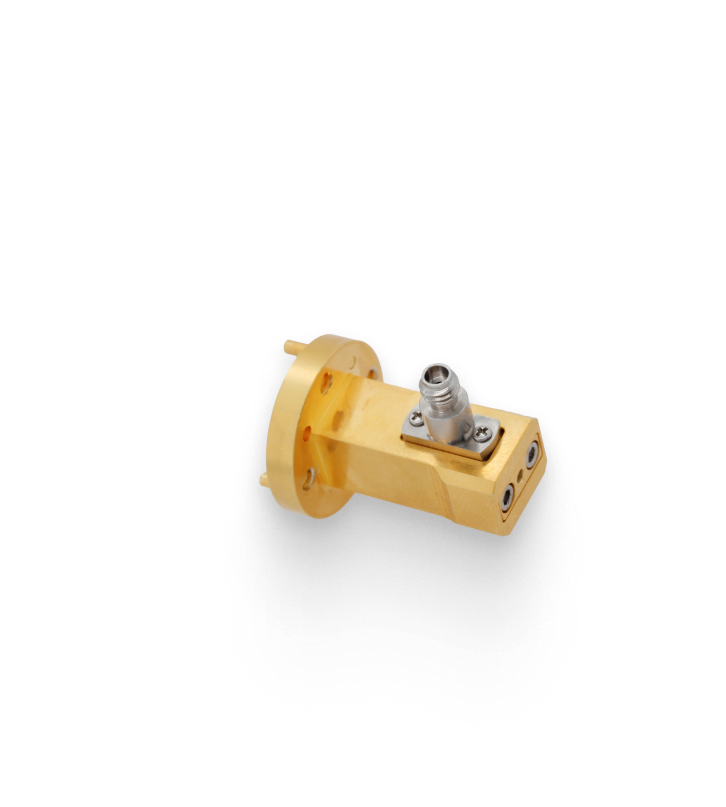

Withwave’s waveguide to 1 mm coaxial adapters are expertly designed to provide a seamless transition
between waveguide and coaxial transmission media for millimeter-wave applications.
A frequency range from 50 GHz to 110 GHz is handled by standard EIA waveguide flange and coaxial connector.
Features
• Frequency Range: 75 ~ 110 GHz
• Waveguide Type: WR-10, WR-12
• Connector Types: 1mm Male • Female
• Precise Signal Transmission
• Minimal signal Loss
Applications
• Telecommunications
• Wireless Communication Systems
• Test & Measurement Equipment
• Advance Research Instrumentation
Products List
Waveguide to Coaxial Adapters
| Part Number | Freq, Low [GHz] | Freq, High [GHz] | WG Port [Side 1] | Coaxial Port [Side 2] | Orientation | Return Loss Typ. [dB] |
Insertion Loss Typ. [dB] |
Power Handling Min. [W], CW |
|---|---|---|---|---|---|---|---|---|
| WGA-R10 | 75 | 110 | WR-10 | 1.0 | Right Angle | 15 | 1 | 10 |
| WGA-R12 | 60 | 90 | WR-12 | 1.0 | Right Angle | 15 | 1 | 10 |
