T-Probe

Part No: PU-03G-02

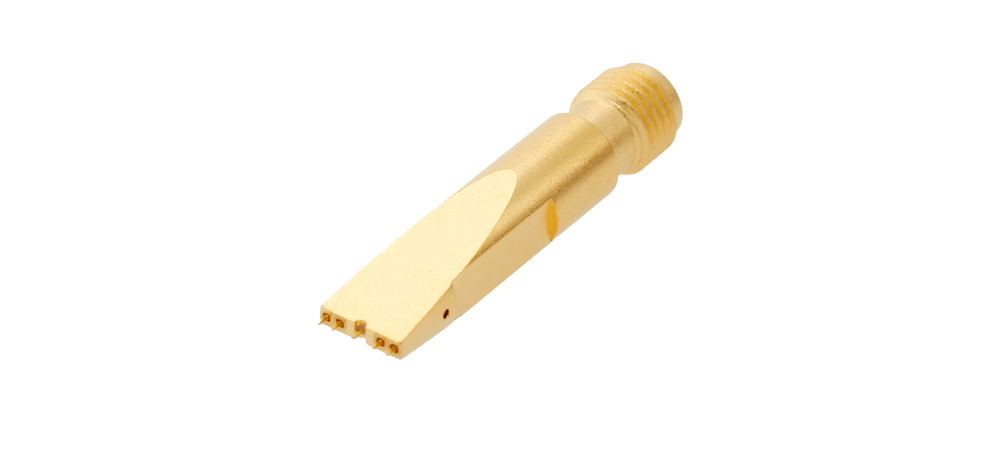

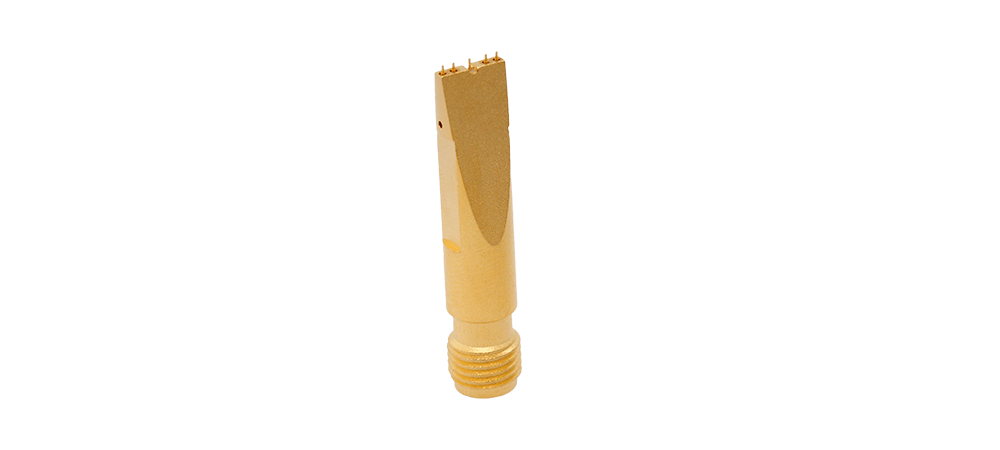

T-Probe, 2.92mm(F), 40GHz, GSG, Pitch : 1.5mm & 2.5mm

Freq. Range

DC ~ 40 GHz

Connector

2.92mm (f)

Type

GSG (Ground Signal Ground)

Pitch Interval

1.5 & 2.5 mm

Insertion Loss

Max. 0.5 dB

Return Loss

Min. 10 dB

Pin Structure

Pogo

Operating Temp

-40 ~ 120 ℃
