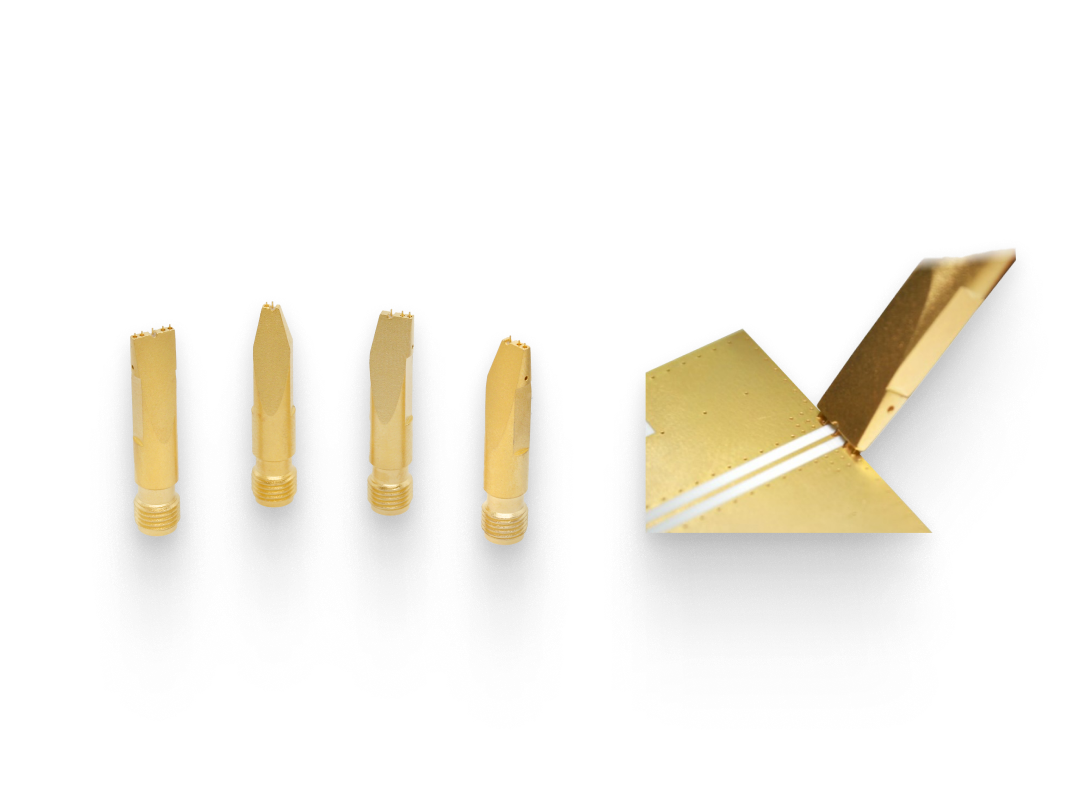

T-Probe™

WithWave’s Attenuators are designed with a stainless steel SMA connector and aluminum cooling area for
excellent RF performance up to 18 GHz and 40 GHz.

These attenuators have a male gender on side 1 and female gender on side 2.

Features

• DC to 20 & 40 GHz
• Low Insertion Loss and return loss
• Probe Type: Ground-Signal-Ground, Ground-Signal

Applications

• Test and Measurement
• RF & Microwave module signal insertion,
   detection & output measurement
• High freq. circuit board electrical performance analysis
• High speed digital circuit analysis

Customer Support​

Catalog
Contact us
Contact us
Manual

Customer Support​

Specifications

• Frequency Range:
• DC to 20 GHz – 3.5mm Connector
• DC to 40 GHz – 2.92mm Connector
• Insertion Loss: 0.5 dB, max
• Return Loss: 30 dB, min
• Connector Type: 3.5mm • 2.92mm, (f)
• Pitch Range: 0.8 • 1.5 • 2.5 mm
• Probe Pin Type: Pogo Structure
• Operating Temp.: -40 ℃~ +120℃

Products List T-Probe™ Series
Part Number Freq. Max [GHz] Insertion Loss Max. [dB] Return Loss Min. [dB] Connector Type (f) Probe Type Pitch Interval [mm]
PU-04S-02 20 0.5 10 3.5 mm GS [GND-Signal] 1.5 & 2.5
PU-04G-01 20 0.5 10 3.5 mm GSG [GND-Signal-GND] 0.8
PU-04G-02 20 0.5 10 3.5 mm GSG [GND-Signal-GND] 1.5 & 2.5
PU-04S-01 20 0.5 10 3.5 mm GS [GND-Signal] 0.8
PU-03G-01 40 0.5 10 2.92 mm GSG [GND-Signal-GND] 0.8
PU-03G-02 40 0.5 10 2.92 mm GSG [GND-Signal-GND] 1.5 & 2.5
PU-03S-01 40 0.5 10 2.92 mm GS [GND-Signal] 0.8
PU-03S-02 40 0.5 10 2.92 mm GS [GND-Signal] 1.5 & 2.5

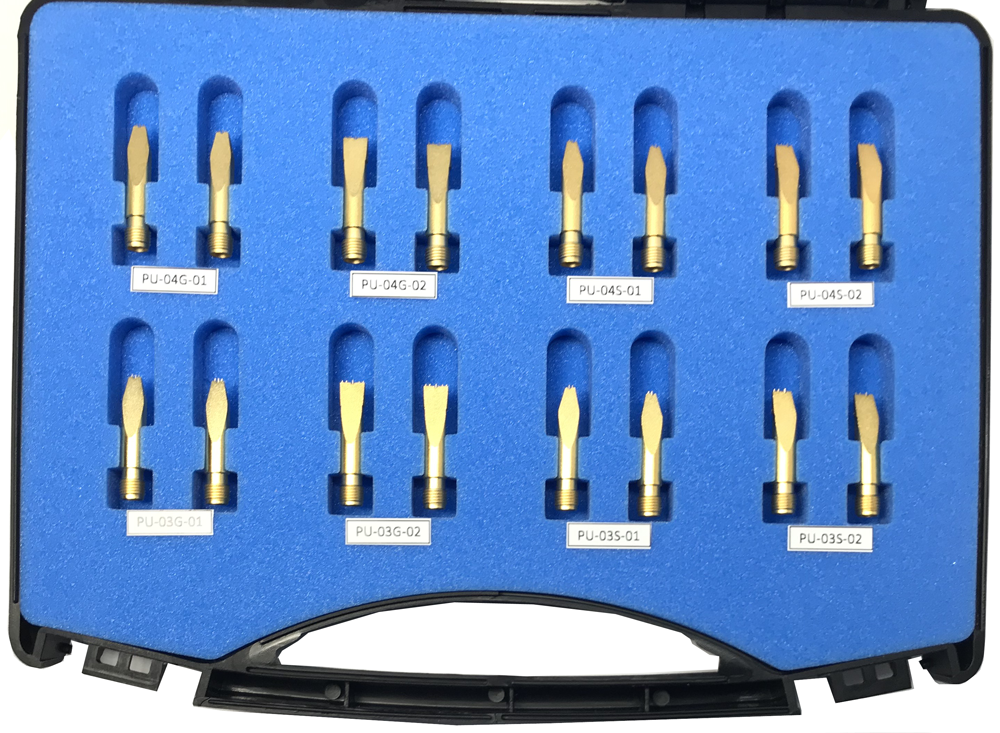

Products List T-Probe Kit™
Features

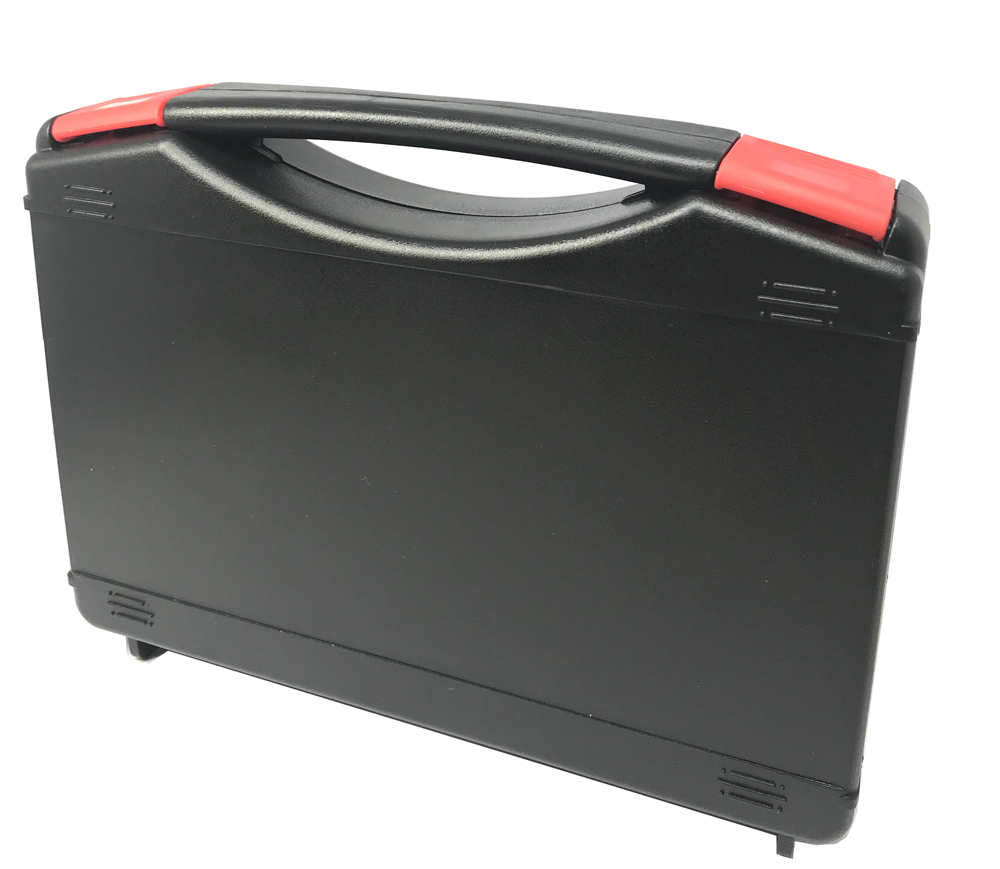

The T-Probe Kit™ includes all T-Probe subtypes and consists of a package box that can be easily transported.
Please visit the "Contact Us" page for inquiries.
Including Parts Probe Type Q'ty
PU-03G-01 T-Probe (40 GHz), GSG type, pitch: 0.8 mm @ Coaxial 2.92 mm 2EA
PU-03G-02 T-Probe (40 GHz), GSG type, pitch: 1.5 & 2.5 mm @ Coaxial 2.92 mm 2EA
PU-04G-01 T-Probe (20 GHz), GSG type, pitch: 0.8 mm @ Coaxial 3.5 mm 2EA
PU-04G-02 T-Probe (20 GHz), GSG type, pitch: 1.5 & 2.5 mm @ Coaxial 3.5 mm 2EA
PU-03S-01 T-Probe (40 GHz), GS type, pitch: 0.8 mm @ Coaxial 2.92 mm 2EA
PU-03S-02 T-Probe (40 GHz), GS type, pitch: 1.5 & 2.5 mm @ Coaxial 2.92 mm 2EA
PU-04S-01 T-Probe (20 GHz), GS type, pitch: 0.8 mm @ Coaxial 3.5 mm 2EA
PU-04S-02 T-Probe (20 GHz), GS type, pitch: 1.5 & 2.5 mm @ Coaxial 3.5 mm 2EA
Products List Test Cables
Part Number Description
W203-SM1SM1-1M DC to 26.5 GHz, SMA (Male), 3.8 mm Cable Diameter
W100 Series DC to 40 GHz, 2.92mm (Male), 3.6 mm Cable Diameter
W100 Series DC to 35 GHz, 3.5mm (Male), 3.6 mm Cable Diameter
W100 Series DC to 26.5 GHz, SMA (Male), 3.6 mm Cable Diameter
