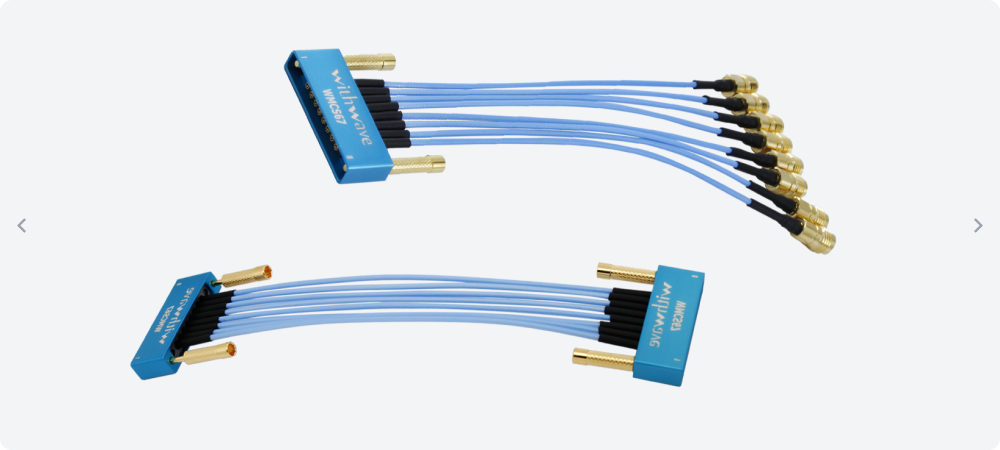

Multi-Channel SMPM Cable Assembly Solderless Vertical & Edge Mount Type
WithWave’s Multi-Channel SMPM Cable Assemblies (WMCM Series) provide a wide range of
multiple coax connectors and flexible cable assemblies in 26.5, 40 and 50 GHz configurations
based on precision array design and superior high-frequency cabling solutions.

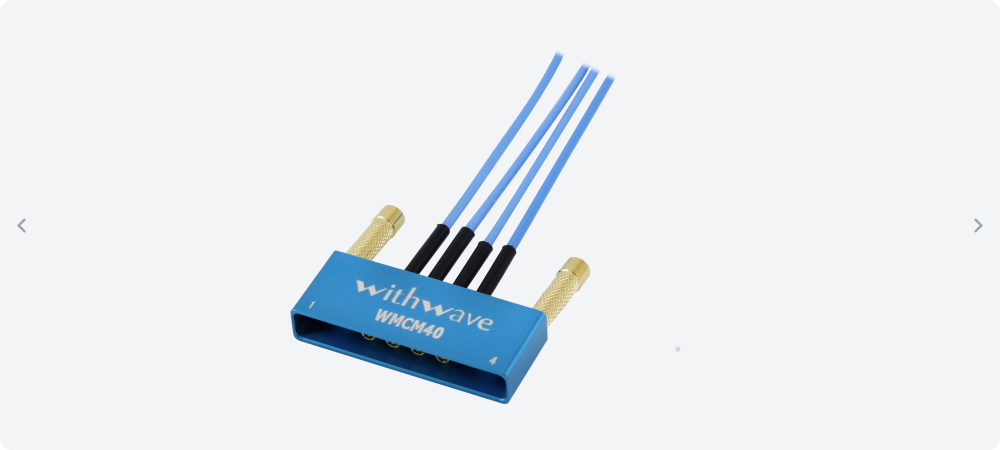

The WMCM comprises a single housing in 2, 4, and 8 channels. It can be combined with the
PCB in compressed form, which provides a lower total cost of testing components without the soldering procedure.
Features
• Frequency Range: DC to 26.5, 40 & 50 GHz
• Solderless Vertical and Edge Mount type (SMPM)
• 1 X 2 • 1 X 4 • 1 X 8 Channels
Specifications
PCB Mount Type
Vertical Mount
Edge Mount
Frequency Range
26.5 GHz
40 GHz
50 GHz
26.5 GHz
40 GHz
50 GHz
Opposite Connector Type
SMA
2.92mm
2.4mm
SMA
2.92mm
2.4mm
VSWR (:1)
1.4
1.5
1.6
1.4
1.5
1.6
# of Channels
1 X 2 • 1 X 4 • 1 X 8
Contact Interval (Pitch)
4.00 mm (0.154")
Coaxial Cable Diameter
0.047"
Min. Cable Length
100 mm [3.94"]
Operating Temperature
-55℃ ~ 125℃
Test Condition
- Remark
- Remark
Multi-Channel SMPM Cable Assembly Configuration (WMCM to Coaxial Connector)
Series
WMCM
Max. Frequency Range
Screw Handles (Side 1)
# of Channels
Pitch(mm)
1: 4.00
Coaxial Connectors (Side 2)
Cable Length(mm)
Phase Matching
# of Phase Matched Cable Set
Part Number Set up
WMCM
WMCM
-
-
-
1: 4.00 mm
-
Cable Length: - mm
-
-

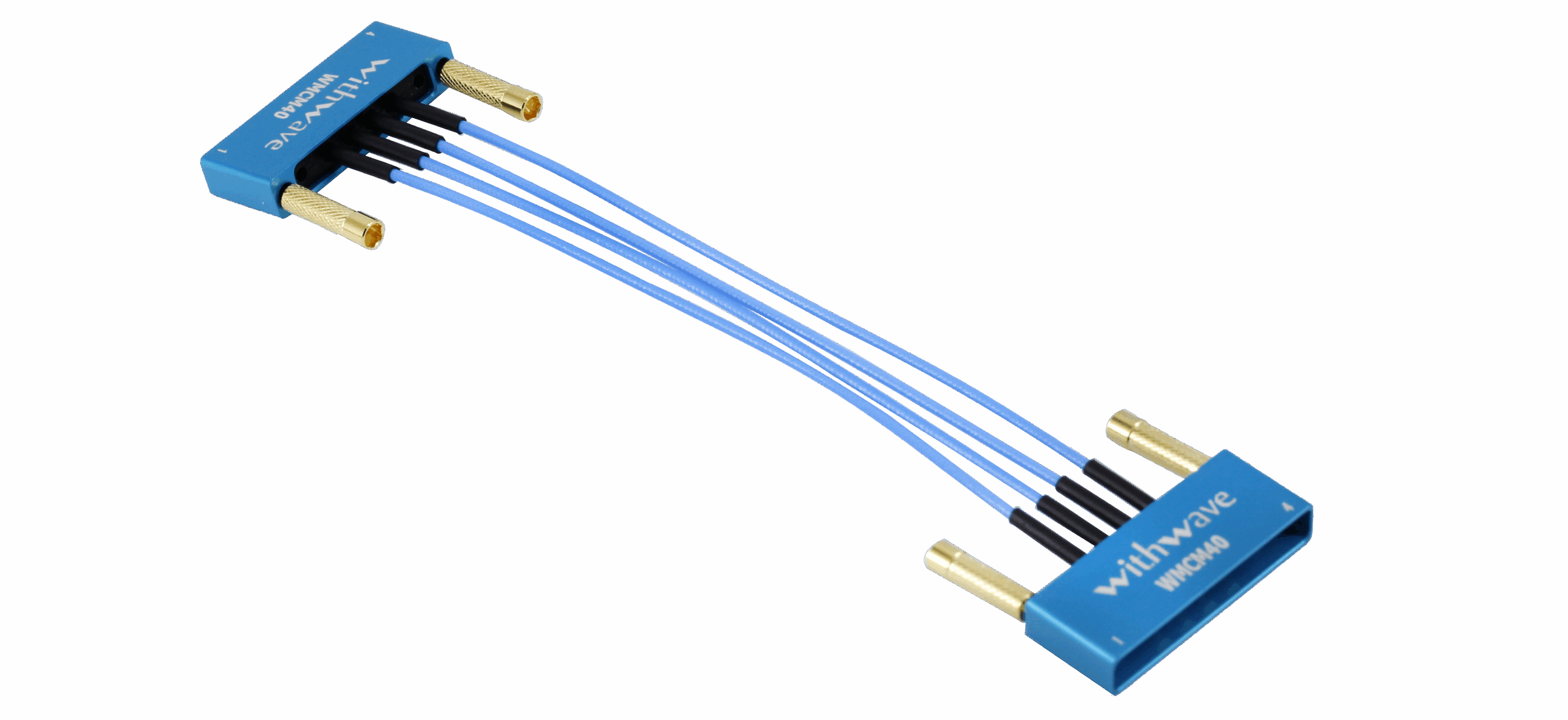

Multi-Channel SMPM Cable Assembly Configuration (WMCM to WMCM: Jumper Type)
Series
WMCM to WMCM
Max. Frequency Range
50 GHz
Screw Handles (Both sides)
# of Channels
Pitch(mm)
1: 4.00
Cable Length(mm)
Phase Matching
# of Phase Matched Cable Set
Part Number Set up
WMCM-WMCM
WMCM to WMCM
50 GHz
-
-
1: 4.00 mm
Cable Length: - mm
-
-

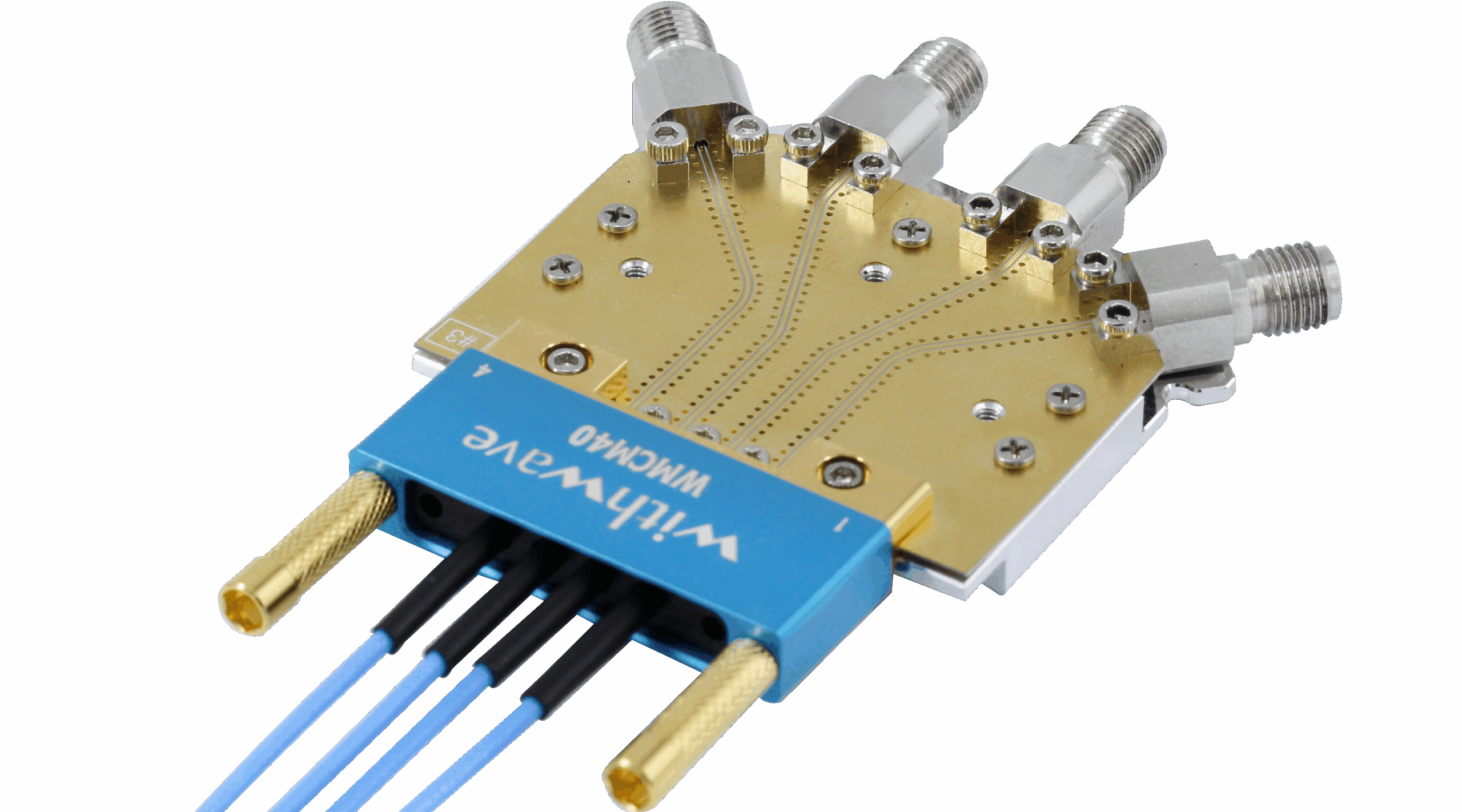

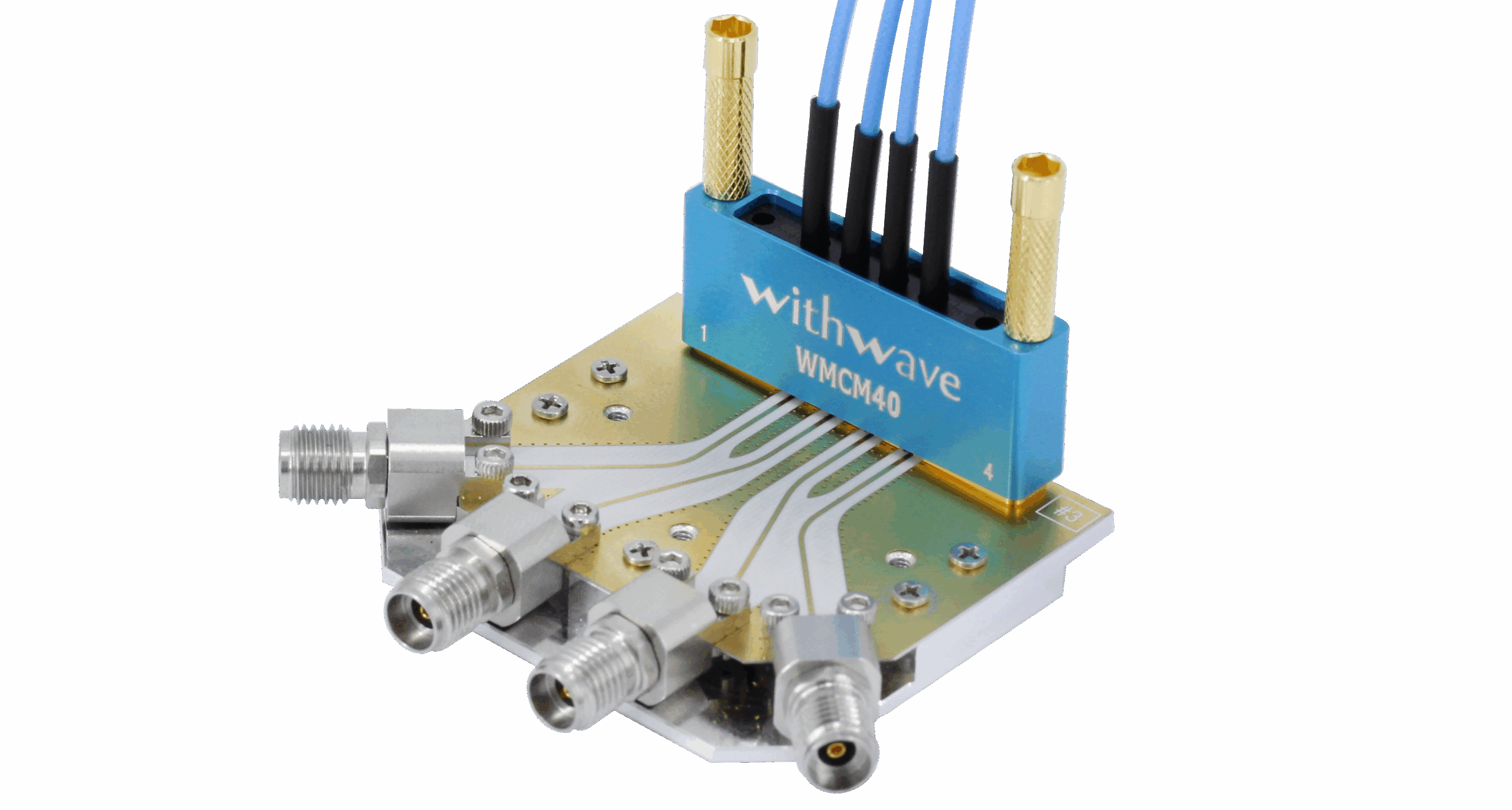

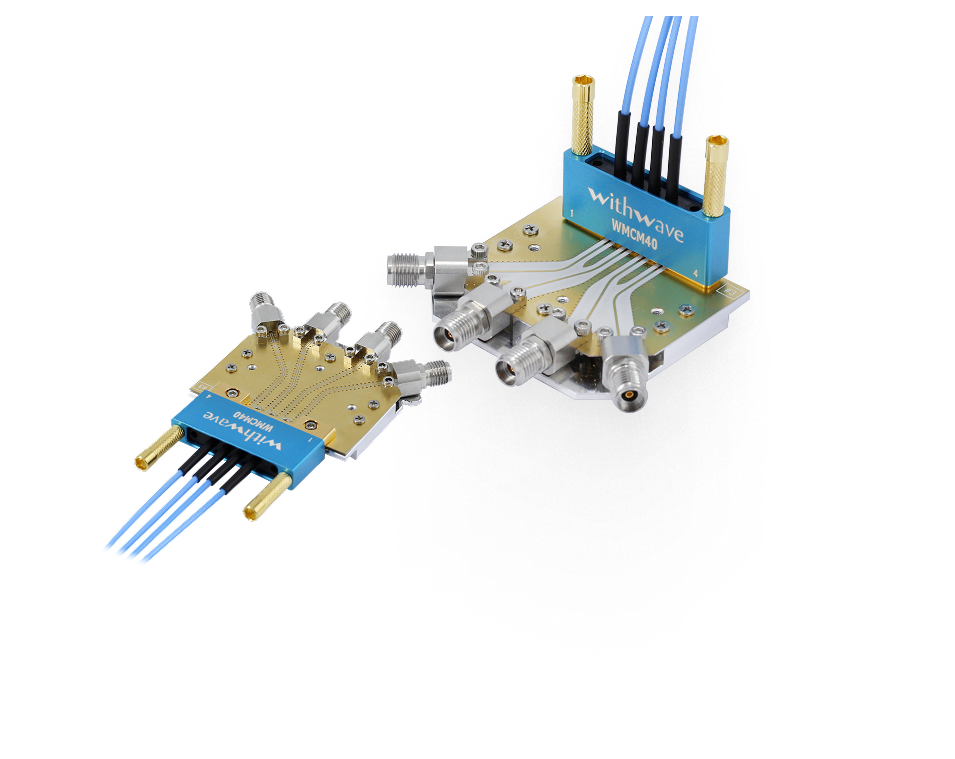

Vertical Board Connector
*mated Multi-Channel SMPM Cable Assembly
Edge Mount Board Connector
*mated Multi-Channel SMPM Cable Assembly
