RF Switch Module, SP8T, 10 MHz to 8 GHz, Absorptive Type, 2.92mm (Female) - With-wave

RF Switch Module, SP8T

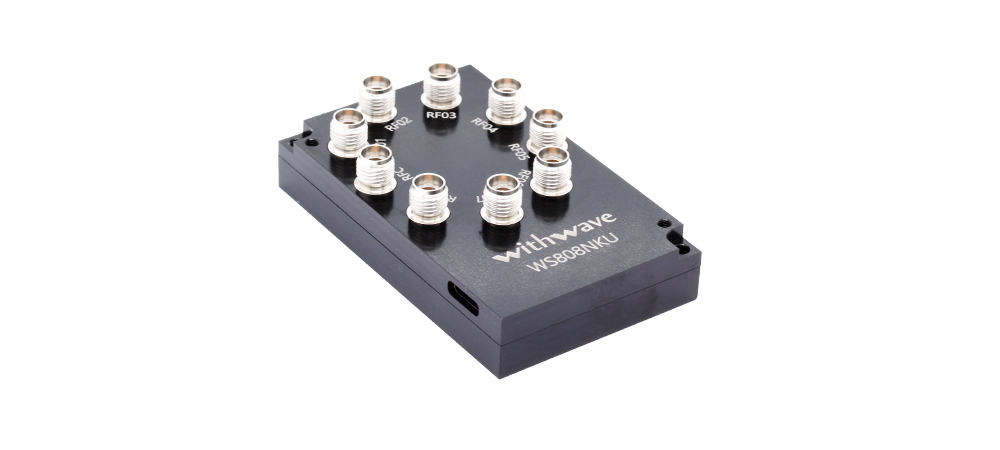

Part No: WS808NKU

RF Switch Module, SP8T, 10 MHz to 8 GHz, Absorptive Type, 2.92mm (Female)


Freq. Range

10 MHz ~ 8 GHz

Type

SP8T

Configuration

Absorptive

RF Input

33 dBm, max

Insertion Loss

3 dB, Typ

Isolation

32 dB, Typ

Switching Time

200 us

DC Current

14 mA, 5V

Control Port

USB Type-C

Connectors

2.92mm (f)

Remark 1

-

Remark 2

-
