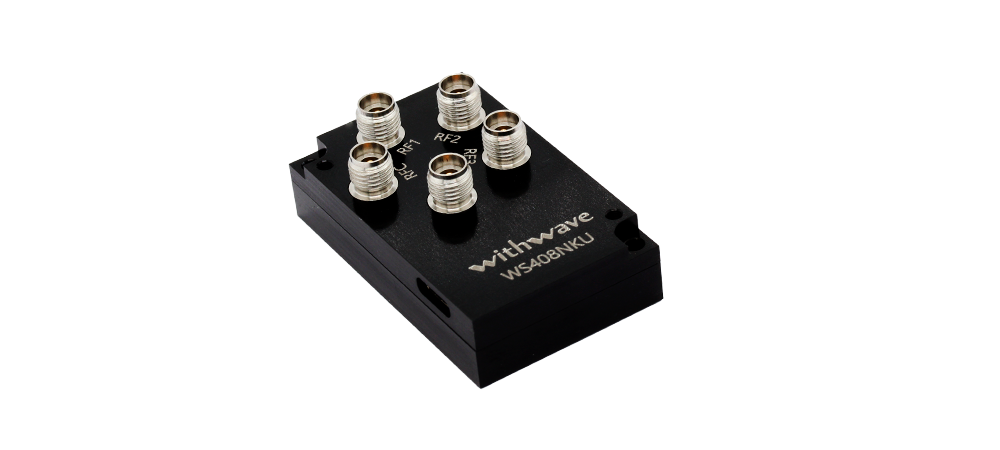

RF Switch Module, SP4T, 10 MHz to 10 GHz, Absorptive Type, 2.92mm (Female) - With-wave

RF Switch Module, SP4T

Part No: WS408NKU

RF Switch Module, SP4T, 10 MHz to 10 GHz, Absorptive Type, 2.92mm (Female)


Freq. Range

10 MHz ~ 10 GHz

Type

SP4T

Configuration

Absorptive

RF Input

33 dBm, max

Insertion Loss

3.4 dB, Typ

Isolation

33 dB, Typ

Switching Time

200 us

DC Current

14 mA, 5V

Control Port

USB Type-C

Connectors

2.92mm (f)

Remark 1

-

Remark 2

-
