RF Switch Module, SP12T, 10 MHz to 44 GHz, Absorptive Type, SMPM (Male) - With-wave

RF Switch Module, SP12T

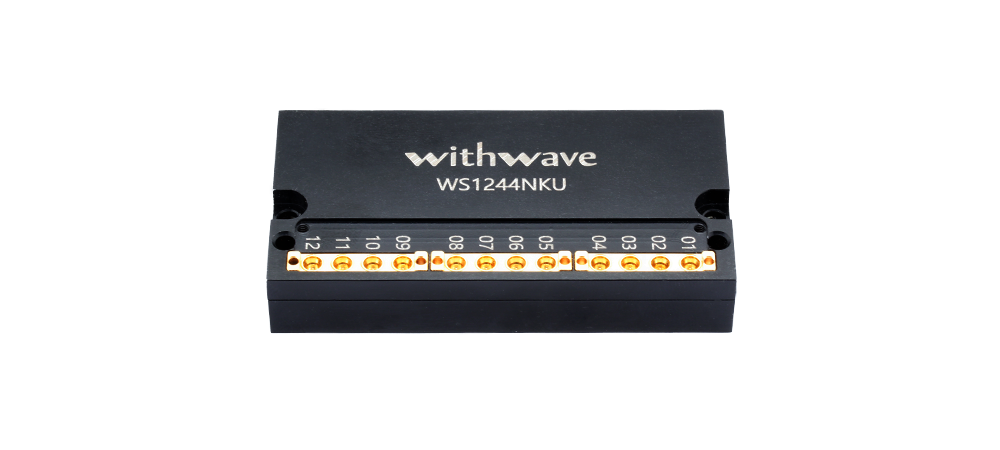

Part No: WS1244NKU

RF Switch Module, SP12T, 10 MHz to 44 GHz, Absorptive Type, SMPM (Male)


Freq. Range

10 MHz ~ 44 GHz

Type

SP12T

Configuration

Absorptive

RF Input

24 dBm, max

Insertion Loss

10.8 dB, Typ

Isolation

40 dB, Typ

Switching Time

200 us

DC Current

19 mA, 5V

Control Port

USB Type-C

Connectors

SMPM (m)

Remark 1

-

Remark 2

-
