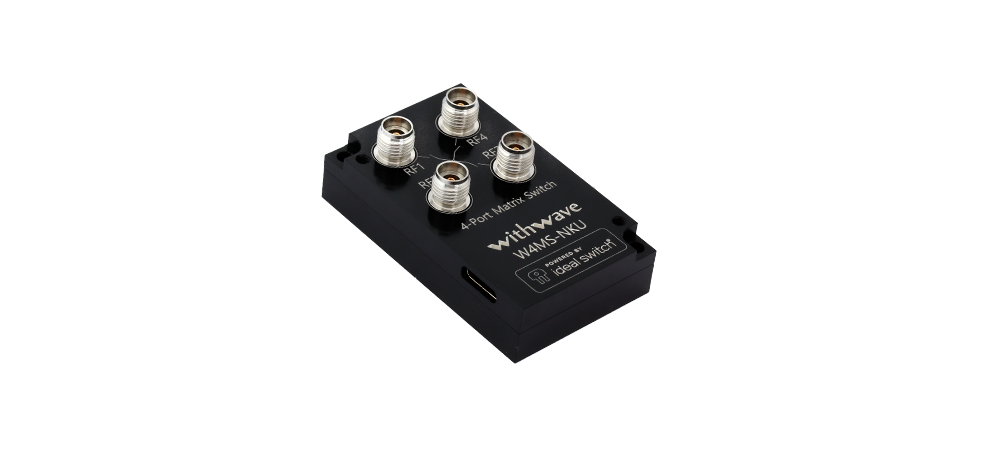

RF Switch Module, 4-Port Matrix

Part No: W4MS-NKU

RF Switch Module, 4-Port Matrix, DC to 20 GHz, Reflective Type, 2.92mm (Female)

Freq. Range

DC ~ 20 GHz

Type

4-Port Matrix

Configuration

Reflective

RF Input

39.5 dBm, max

Insertion Loss

2.9 dB, Typ

Isolation

17 dB, Typ

Switching Time

200 us

DC Current

85 mA, 5V

Control Port

USB Type-C

Connectors

2.92mm (f)

Remark 1

MEMS type switch

Remark 2

-
