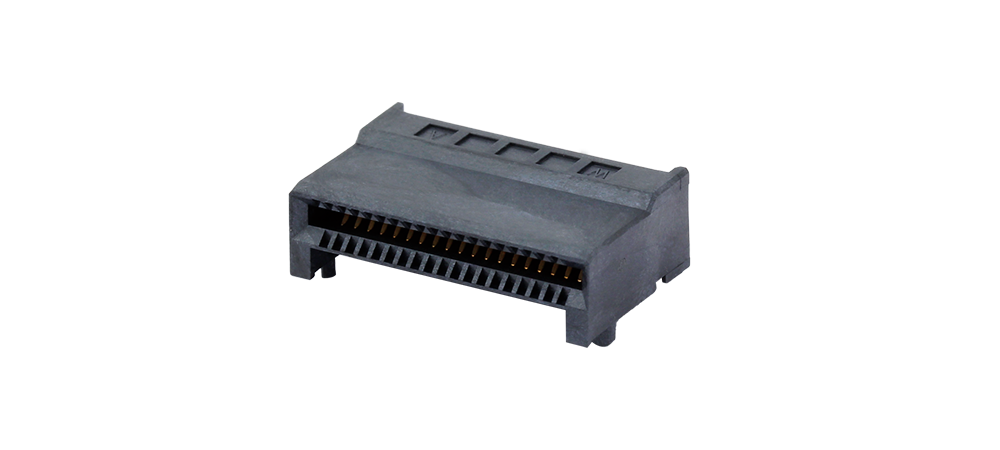

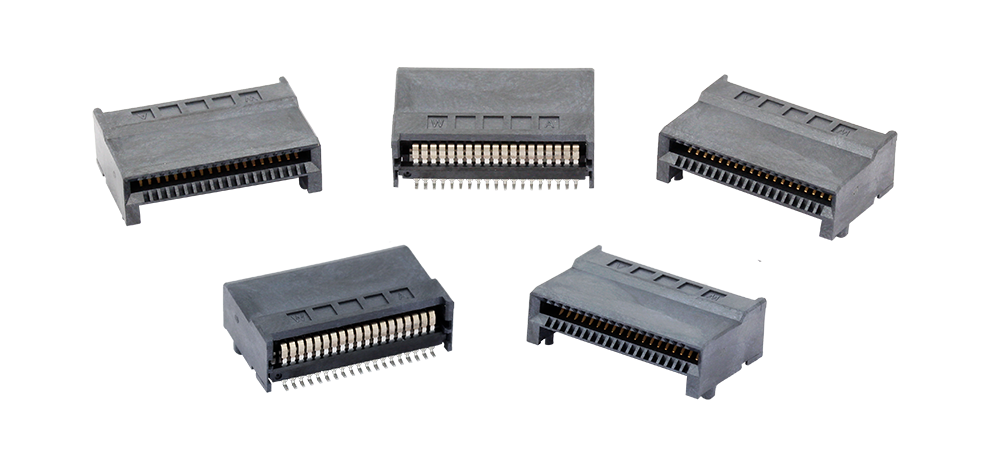

Quad Small Form-Factor Pluggable

Part No: HSE00_R038R03H060A

PCB Mount Connector- 28 Gbps, 38 pins

Data Rate

28 Gbps NRZ *56 Gbps PAM-4

Pin Counts

38

Pitch Interval

0.8 mm

Stack Height

6.05 mm

Impedance

100 Ohms

Shape

Right Angle

Size

18.2 x 11.3 x 6.05

Contact Material

Copper Alloy

Housing Material

LCP, UL94V-01

Remark #1

Edge Mount

Remark #2

-

Remark #3

-
