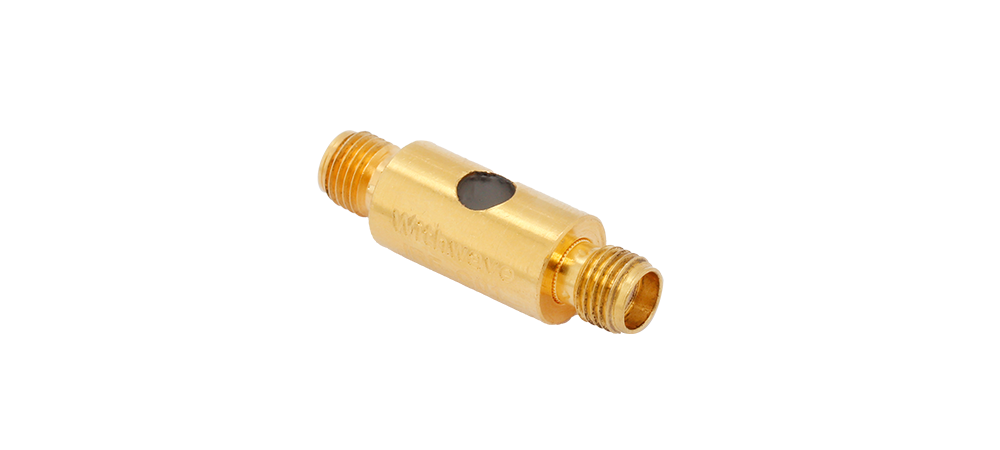

Cryogenic Infrared Filter

Part No: IRF-K01-S

Cryogenic, SMA, Female-Female, Low cut-off, Single

Cut-Off Freq.

1 GHz

Insertion Loss

1 dB, max @ 0.5 GHz, 4 K

Return Loss

15 dB, min

Operating Temp.

10 mK, min

Connectors RF

SMA (F), (F)

Body & Plating

Gold Plated OFHC Copper

Size

29 mm (L), 9 mm (Dia)

Impedance

50 Ohms

Remark 1

-

Remark 2

-

Remark 3

-

Remark 4

-
