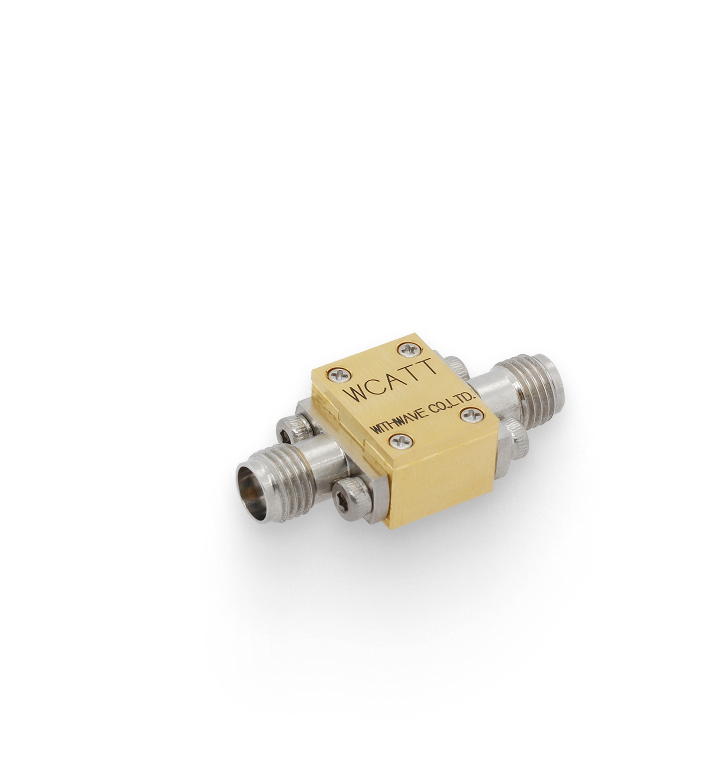

Cryogenic Attenuators

Withwave’s Cryogenic RF attenuators have been specifically designed to provide precise attenuation
values over the frequency range of DC to 18 GHz at extreme low cryogenic temperatures.
They offer excellent performance, making them ideal for quantum electrodynamics devices including quantum
computing and other RF applications at cryogenic temperatures.

Attenuators are thoroughly evaluated by using Withwave’s 4 K cryogenic measurement system to ensure optimal reliability in cryogenic environments.

Features

• Frequency: DC to 18 GHz
• 20 dB model
• Minimal change in attenuation with temperature
• Excellent RF Match
• NiCr Crystalline Quartz conductive dielectric
• Silver Epoxy bonded
• Machined OFHC block, gold plated and nonmagnetic
• Connector 1: SMA (f), Standard
• Connector 2: SMA (f), bulkhead for thermalization
• Stackable mechanical design

Applications

• Quantum Computing
• Radio Astronomy
• Space Communication

Customer Support​

Catalog
Contact us
Contact us
Products List Cryogenic Attenuators

Part NumberFrequency
Max. [GHz]		 Attenuation Att. Var. w/ Freq.
Typ. [dB]		 Return Loss
Typ. [dB]		 Operating Temp.
Typ. [mK]		 Power Handling
Max. [dBm]		 Connector [Side 1] Connector [Side 2]
ATC-K01-20 10 20 ±1 20 10 20 2.92 mm (f) 2.92 mm (f)
ATC-S01-20 10 20 ±1 20 10 20 SMPS (f) SMPS (f)
