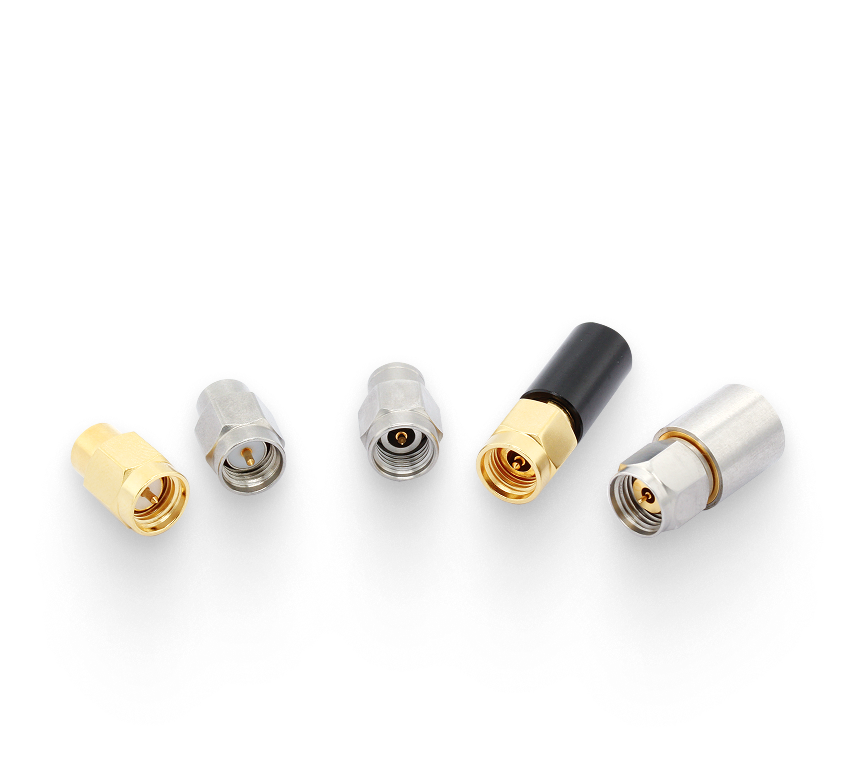

Precision Terminations
WithWave’s Terminations are composed of broadband; due to their coaxial construction, they offer
excellent performance specified from DC to 18 GHz, 40 GHz, 50 GHz, and 67 GHz.
Precision coaxial connector interface ensures a good impedance match across a wide bandwidth.
Withwave also presents the Low PIM terminations with -160 dBc (typical) passive intermodulation. All of
our low PIM terminations cover 690 to 2800 MHz frequency bands. The recommended applications include
the In-Building Base Station, Wireless Infrastructure, as well as 5G and AWS applications.
Features
• SMA • 2.92mm • 2.4mm & 1.85mm (Male)
• Frequency: DC to 18 • 40 • 50 & 67 GHz
• 50 Ohms
Applications
• Test and Measurement
• Mobile Communications (Low PIM)
• In Building Networks (Low PIM)
• Defense and Radar
| Part Number | Freq. High [GHz] | VSWR(:1) Typ. | Input Power Max. [W] | Connector |
|---|---|---|---|---|
| TM06-02-02A | 6 | 1.10 | 2 | SMA (m) |
| TM06-02-01A | 18 | 1.20 | 2 | SMA (m) |
| TM06-02-01F | 18 | 2 | SMA (m) | |
| TM06-03-03C | 4 | 1.20 | 5 | SMA (m) |
| TM06-03-01C | 18 | 1.35 | 5 | SMA (m) |
| TM06-04-01C | 18 | 1.40 | 10 | SMA (m) |
| TM07-02-03D | 4 | 1.2 | 2 | N-Type (m) |
| TM07-02-04D | 8 | 2 | N-Type (m) | |
| TM07-03-01C | 18 | <1.3 | N-Type (m) | |
| TM07-04-02C | 4 | 1.2 | 2 | N-type |
| TM03-02-05A | 40 | 1.30 | 2 | 2.92mm (m) |
| TM03-01-05 | 40 | 1.30 | 1 | 2.92mm (m) |
| TM02-01-06 | 50 | 1.10 | 0.5 | 2.4mm (m) |
| TM01-01-07 | 67 | 1.15 | 0.5 | 1.85mm (m) |
| TM06-03-02C | 6 | 1.2 | 5 | SMA (m) |
| Part Number | Freq. Low [GHz] | Freq. High [GHz] | PIM Level [dBc] | Peak Power Max. [KW] | Power Rating Avg. [W] | Connector |
|---|---|---|---|---|---|---|
| TM21-09-09C | 0.69 | 2.8 | <-160dBc @2x20W | 1 | 50 | 7/16 DIN(M) / 7/16 DIN(F) |
| TM20-09-09C | 0.69 | 2.8 | 160 dBc, max, @ 20 W two-tones | 1 | 50 | 4.3-10 (m•f) |
| TM21-04-09 | 0.69 | 2.80 | 160 dBc, max, @ 5 W two-tones | 0.5 | 10 | 7/16 DIN (m•f) |
| TM21-04-09H | 0.69 | 2.8 | <-160dBc @2x20W | 0.5 | 10 | 7/16 DIN (m•f) |
