Power Divider

Part No: PD1018-4-SF

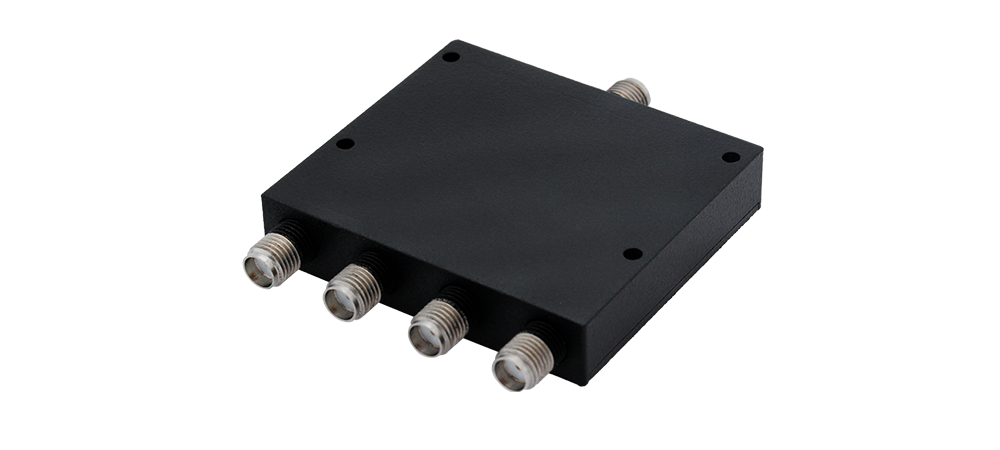

Power Divider, 4-Way, 10 to 18 GHz, SMA(F)

# of Ways

4

Freq. Range

10 to 18 GHz

Insertion Loss

7.0 dB

Isolation

18 dB

Input VSWR(:1)

Input 1.5

Output VSWR(:1)

Output 1.5

Amp. Unbalance

±0.5 dB

Phase Unbalance

±5 degree

Power Handling

20 W

Reverse Power

Connector

SMA (f)

Material

Finishing

Operating Temp.

-40 ℃to +85 ℃

Size (Body)

Impedance

50 Ohm
