Power Divider

Part No: PD0560-2-SF

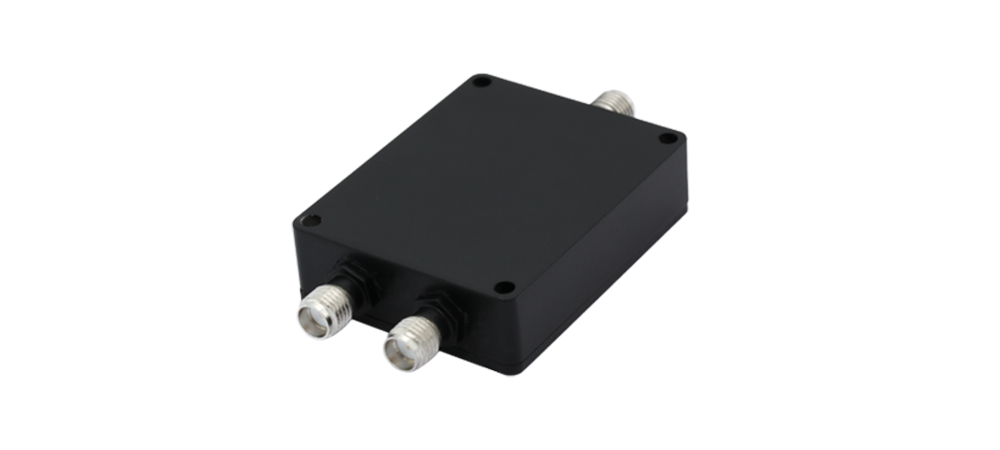

Power Divider, 2-Way, 0.5 to 6 GHz, SMA(F)

# of Ways

2

Freq. Range

0.5 to 6 GHz

Insertion Loss

4.0 dB

Isolation

18 dB

Input VSWR(:1)

Input 1.45 : 1

Output VSWR(:1)

Output 1.25 : 1

Amp. Unbalance

±0.3 dB

Phase Unbalance

±3 deg

Power Handling

20 W

Reverse Power

2 W

Connector

SMA (f)

Material

Finishing

Operating Temp.

-55 ℃ to +85 ℃

Size (Body)

Impedance

50 Ohm
