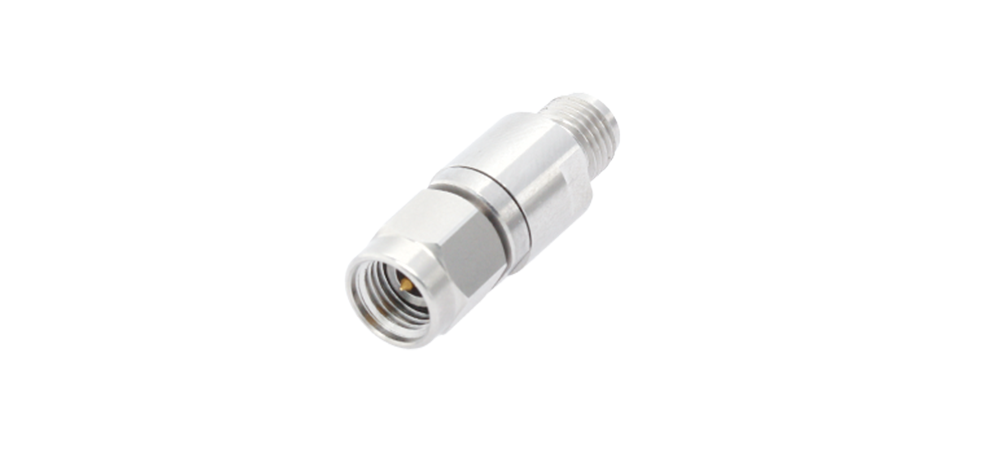

DC Block

Part No: DC03-01

DC Block, 2.92 mm Type 30 MHz to 40 GHz_DC03-01

Freq. Range

30 MHz ~ 40.5 GHz

Insertion Loss

0.35 [dB]

Working Voltage

50 [V] DC

VSWR(:1)

1.30

Connector, Side 1

2.92mm (m)

Connector, Side 2

2.92 mm (f)

Dielectric

PTFE

Center Conductor

BeCu with Gold Plated

Body Material

Stainless (passivated)

Size

25.0 X 9 Ø (mm)

Impedance

50 Ohms

Remark

-
