DC Blocks

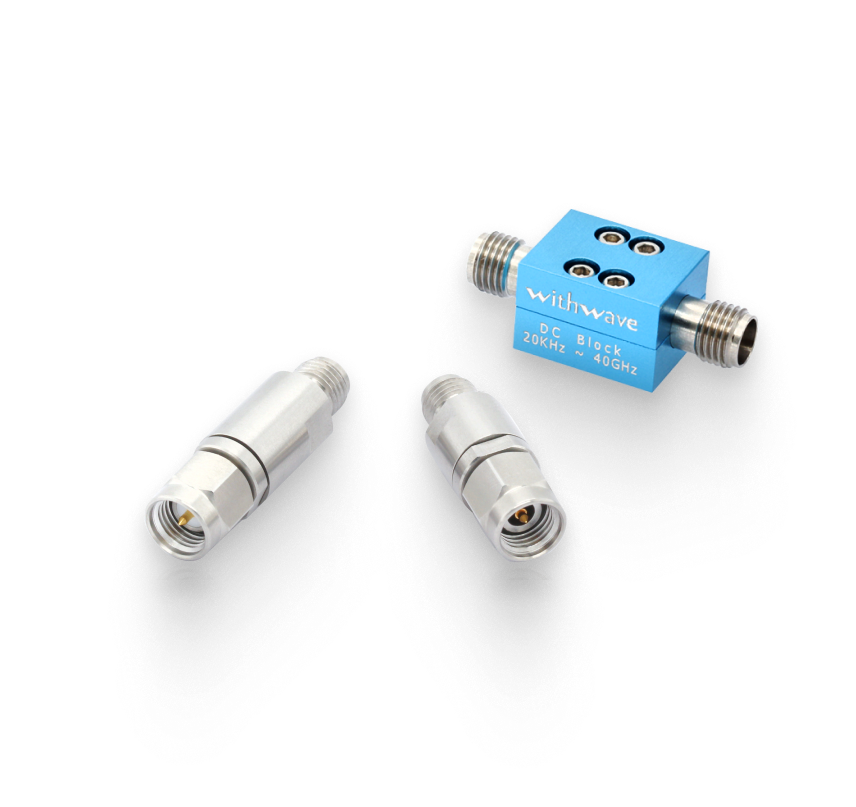

WithWave’s DC Blocks are composed of broadband, coaxial blocking capacitors. They isolate the DC
components of waveforms while minimizing loss and group delay ripple. Due to their coaxial construction,
they offer excellent RF performance and low insertion loss specified from 30 MHz to 26.5 & 40 GHz.
The Precision SMA and 2.92 mm coaxial connector interfaces ensure an excellent impedance match across a wide bandwidth.
Features
• Frequency: 30 MHz to 26.5 GHz
• SMA & 2.92 mm (Male to • Female) or 2.92 mm (f)
• VSWR: 1.25 (SMA) & 1.30 (2.92 mm)
• 50 Ohms
Applications
• Test and Measurement Instrumentation
• Communication Systems
• High Speed Data
• Defense Systems
Products List
DC Block
| Part Number | Freq. Low [MHz] | Freq. High [GHz] | Insertion Loss Max. [dB] | Working DC [V] | VSWR(:1) Typ. | Connector [Side 1] | Connector [Side 2] |
|---|---|---|---|---|---|---|---|
| DC03-01 | 30 | 40.5 | 0.35 | 50 | 1.30 | 2.92mm (m) | 2.92 mm (f) |
| DC03-02 | 0.02 | 40 | 1.3 | 16 | 1.35 | 2.92 mm (f) | 2.92 mm (f) |
| DC06-01 | 30 | 26.5 | 0.35 | 50 | 1.25 | SMA (m) | SMA (f) |
