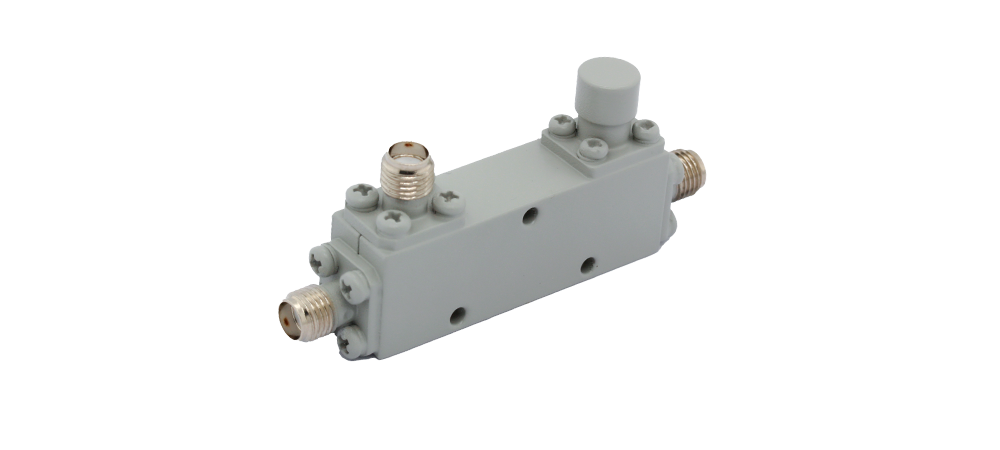

Directional Coupler

Part No: BC20180-10-SF

Directional Coupler, 2 to 18 GHz, SMA(F), 10 dB

Freq. Range

2 ~ 18 GHz

Coupling

10 ± 1.0 dB

Insertion Loss

1.1, Max

Directivity

17 dB Typ

Power Input

50 W, Max

Peak Power Input

1 KW, Max

Connector(s)

SMA (f)

VSWR, Primary

1.2:1 Typ

VSWR, 2nd

1.3:1 Typ

Impedance

50 Ohms

Operating Temp.

−45 ~ +85 ℃

Remark

Size 치수
