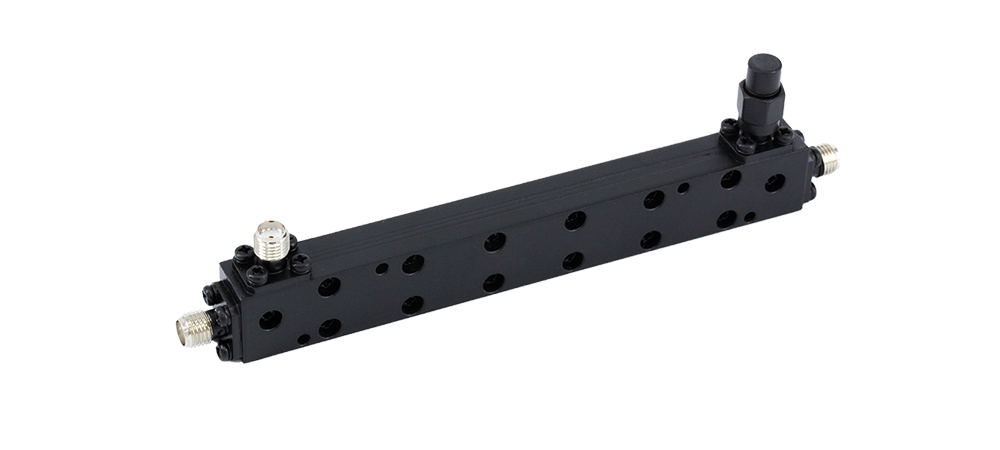

Directional Coupler

Part No: BC0560-20-SF

Directional Coupler, 0.5 to 6 GHz, SMA(F), 20 dB

Freq. Range

0.5 ~ 6 GHz

Coupling

20 ± 1.0 dB

Insertion Loss

0.6 dB

Directivity

15 dB Typ

Power Input

20

Peak Power Input

2 K

Connector(s)

SMA (f)

VSWR, Primary

1.15: 1 (Typ.)

VSWR, 2nd

1.15: 1 (Typ.)

Impedance

50 Ohm

Operating Temp.

-40℃to +85 ℃

Remark
