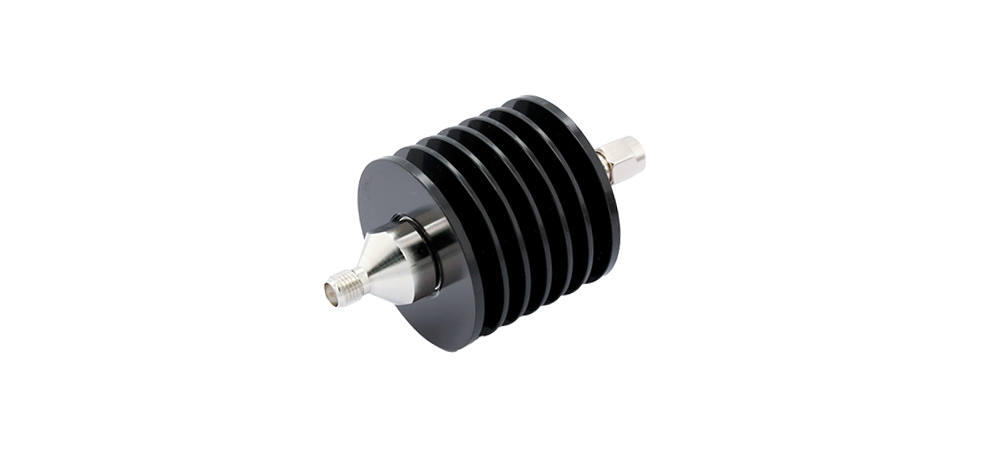

Attenuator

Part No: AT06-06-20dB

Attenuator, 20dB, 20W, DC to 18 GHz, SMA, AT06-06 series

Freq. Range

DC ~ 18 GHz

Attenuation

20 dB

Atten. Accuracy

± 1.2

VSWR(:1

Refer to Datasheet

Input Power

20 W, max

Connector, Side 1

SMA (m)

Connector, Side 2

SMA (f)

Size

69.6 X 38 Ø (mm)

Dielectric

PTFE

Center Conductor

Body

Aluminum cooling are with black color

Impedance

50 Ohms
