Attenuators

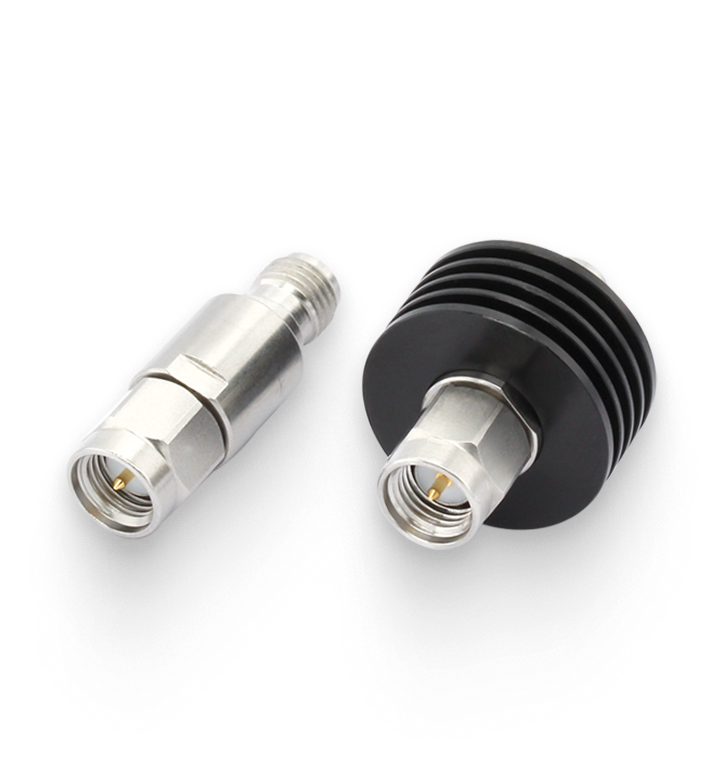

WithWave’s Attenuators are designed with a stainless steel SMA connector and aluminum cooling area for
excellent RF performance up to 18 GHz and 40 GHz.

These attenuators have a male gender on side 1 and female gender on side 2.

Features

• SMA • 2.92mm (Male to Female)
• Frequency: DC to 18 • 40 GHz
• Attenuation Range: 1 ~ 60 dB
• Power Rating: 1 W • 2W & 5 Watt
• 50 Ohms

Applications

• Test and Measurement
• Instrument Protection
• Impadance Matching

Customer Support​

Catalog
Contact us
Contact us
Products List Attenuators
Part Number Freq. High [GHz] Attenuation A Typ. [dB] Atten. Accuracy [dB] VSWR(:1) Typ. Input Power Max. [W] Connector [Side 1] Connector [Side 2]
AT03-01-1dB 40 1 ±1.0 dB 1.35 1 SMA (m) SMA (f)
AT03-01-2dB 40 2 ±1.0 dB 1.35 1 SMA (m) SMA (f)
AT03-01-3dB 40 3 ±1.2 dB 1.35 1 SMA (m) SMA (f)
AT03-01-10dB 40 10 ±1.5 dB 1.40 1 SMA (m) SMA (f)
AT03-01-20dB 40 20 ±1.5 dB 1.40 1 SMA (m) SMA (f)
AT03-01-30dB 40 30 ±1.5 dB 1.40 1 SMA (m) SMA (f)
AT06-02-3dB 18 3 ±1.2 ~ ±1.3 dB 1.30 2 SMA (m) SMA (f)
AT06-02-4dB 18 4 ±1.2 ~ ±1.3 dB 1.30 2 SMA (m) SMA (f)
AT06-02-5dB 18 5 ±1.2 ~ ±1.3 dB 1.30 2 SMA (m) SMA (f)
AT06-02-15dB 18 15 ±1.2 ~ ±1.3 dB 1.30 2 SMA (m) SMA (f)
AT06-02-30dB 18 30 ±1.2 ~ ±1.3 dB 1.30 2 SMA (m) SMA (f)
AT06-02-40dB 18 40 ±1.2 dB 1.35 2 SMA (m) SMA (f)
AT06-02-50dB 18 50 ±2.0 dB 1.40 2 SMA (m) SMA (f)
AT06-02-60dB 18 60 ±2.0 dB 1.4 2 SMA (m) SMA (f)
Refer to Datasheet 18 1 Refer to Datasheet Refer to Datasheet 5 SMA (m) SMA (f)
AT06-03-2dB 18 2 Refer to Datasheet Refer to Datasheet 5 SMA (m) SMA (f)
AT06-03-3dB 18 3 Refer to Datasheet Refer to Datasheet 5 SMA (m) SMA (f)
AT06-03-4dB 18 4 Refer to Datasheet Refer to Datasheet 5 SMA (m) SMA (f)
AT06-03-5dB 18 5 Refer to Datasheet Refer to Datasheet 5 SMA (m) SMA (f)
AT06-03-6dB 18 6 Refer to Datasheet Refer to Datasheet 5 SMA (m) SMA (f)
AT06-03-7dB 18 7 Refer to Datasheet Refer to Datasheet 5 SMA (m) SMA (f)
AT06-03-10dB 18 10 Refer to Datasheet Refer to Datasheet 5 SMA (m) SMA (f)
AT06-03-20dB 18 20 Refer to Datasheet Refer to Datasheet 5 SMA (m) SMA (f)
AT06-03-30dB 18 30 Refer to Datasheet Refer to Datasheet 5 SMA (m) SMA (f)
AT06-06-10dB 18 10 ± 1.2 Refer to Datasheet 20 SMA (m) SMA (f)
AT06-06-20dB 18 20 ± 1.2 Refer to Datasheet 20 SMA (m) SMA (f)
AT06-06-30dB 18 30 ± 1.4 Refer to Datasheet 20 SMA (m) SMA (f)
AT06-06-40dB 18 40 ± 1.4 Refer to Datasheet 20 SMA (m) SMA (f)
AT06-12-1dB 18 1 ± 0.4 1.35 2 SMA (m) SMA (f)
AT06-12-2dB 18 2 ± 0.4 1.35 2 SMA (m) SMA (f)
AT06-12-3dB 18 3 ± 0.4 1.35 2 SMA (m) SMA (f)
AT06-12-5dB 18 5 ± 0.4 1.35 2 SMA (m) SMA (f)
AT06-12-6dB 18 6 ± 0.4 1.35 2 SMA (m) SMA (f)
AT06-12-7dB 18 7 ± 0.4 1.35 2 SMA (m) SMA (f)
AT06-12-10dB 18 10 ± 0.4 1.35 2 SMA (m) SMA (f)
AT06-12-20dB 18 20 ± 1.0 1.35 2 SMA (m) SMA (f)
AT06-12-50dB 18 50 ± 2.0 1.40 2 SMA (m) SMA (f)
AT06-12-60dB 18 60 ± 3.5 1.40 2 SMA (m) SMA (f)
AT07-03-1dB 2 1 ± 0.25 1.10 5 N (m) N (f)
AT07-03-2dB 2 2 ± 0.25 1.10 5 N (m) N (f)
AT07-03-3dB 2 3 ± 0.25 1.10 5 N (m) N (f)
AT07-03-4dB 2 4 ± 0.25 1.10 5 N (m) N (f)
AT07-03-5dB 2 5 ± 0.25 1.10 5 N (m) N (f)
AT07-03-10dB 2 10 ± 0.25 1.10 5 N (m) N (f)
AT07-03-20dB 2 20 ± 0.25 1.10 5 N (m) N (f)
AT07-03-30dB 2 30 ± 0.25 1.10 5 N (m) N (f)
AT09-04-10dB 2 10 ± 0.65 1.25 10 TNC (m) TNC (f)
AT09-04-20dB 2 20 ± 0.65 1.25 10 TNC (m) TNC (f)
AT09-04-30dB 2 30 ± 0.65 1.25 10 TNC (m) TNC (f)
AT09-09-10dB 2 10 ± 1.0 1.35 50 TNC (m) TNC (f)
AT09-09-20dB 2 20 ± 1.0 1.35 50 TNC (m) TNC (f)
AT09-09-30dB 2 30 ± 1.0 1.35 50 TNC (m) TNC (f)
