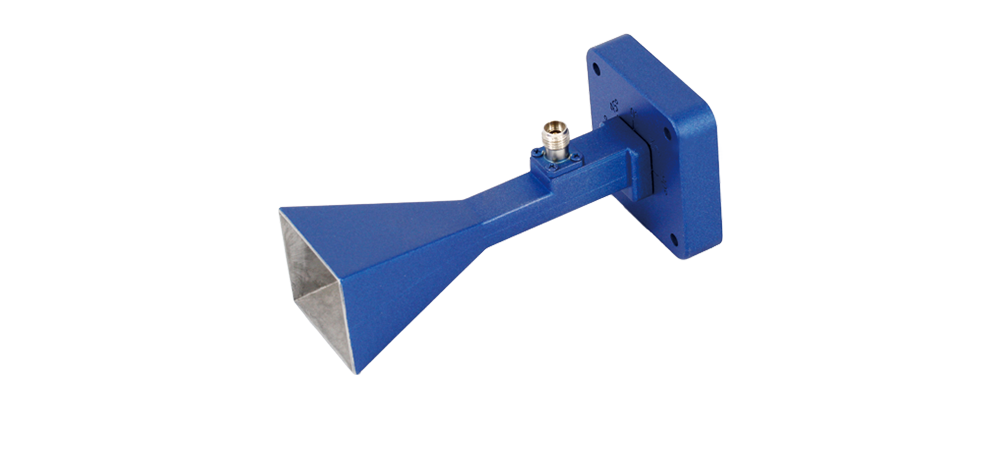

Antenna

Part No: WAKH-01

Standard Gain Horn Antenna

Frequency Range

26.5 ~ 40 GHz

Gain

17 ~ 19 dBi

Connector

2.92 mm (f) 1.1, Max

VSWR (:1)

Typ. 1.5

3 dB Width, Horizontal

20 ± 5°

3 dB Width, Vertical

16 ± 5°

Size

91.4 × 40 × 40 mm

Impedance

50 Ohms

Flange Type

Square Cover

Remark 1

Remark 2

Remark 3

-
