Absorber

Part No: MT20-200

Flexible Microwave Absorber Sheet : Single Band, Peak 2 GHz, max 18 GHz, 2 mm

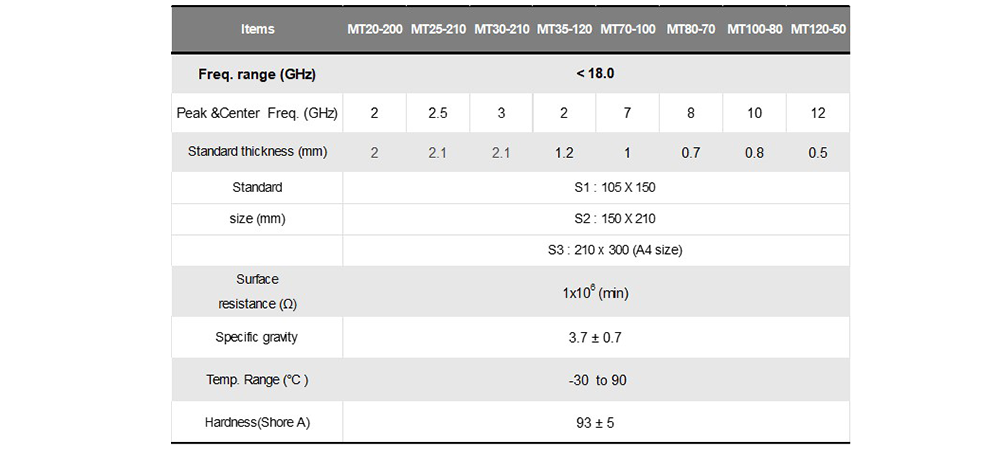

Freq. Range

0.1 ~ 18

Peak or Center Freq.

2

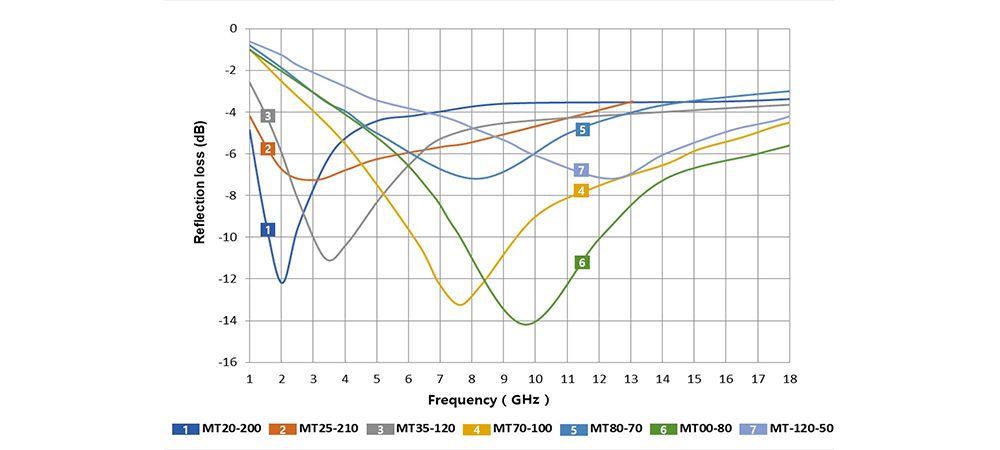

Peak Reflection Loss

12

Thickness

2

Surface Resistance

1x10^6 (min)

Specific Gravity

3.7 ± 0.7

Hardness (Shore A)

93 ± 5

Operating Temp.

-30 to 90

Ordering Size Option, mm

S3 : 210 x 300 (A4 size)
