Absorber

Part No: LS20-100

Flexible Microwave Absorber Sheet : Single Band, Peak 2 GHz, max 6 GHz, 1 mm

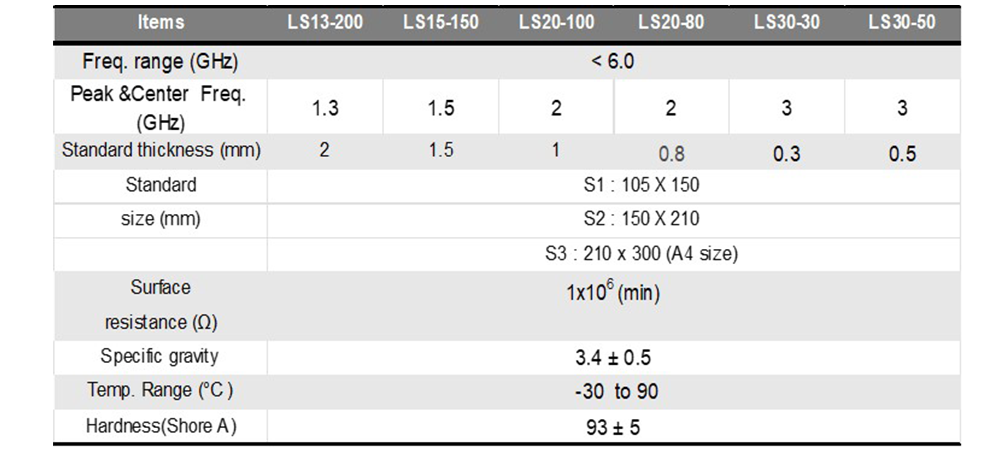

Freq. Range

0.1 ~ 6

Peak or Center Freq.

2

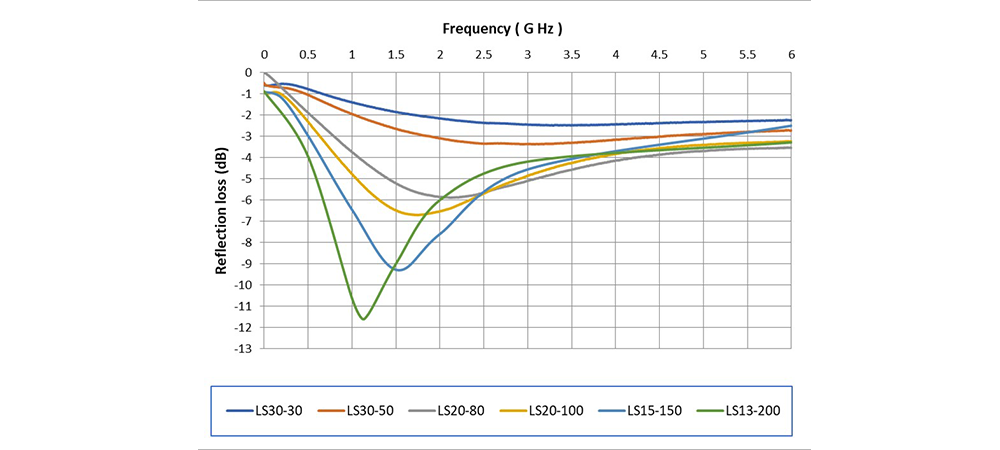

Peak Reflection Loss

-6.6

Thickness

1

Surface Resistance

1x10^6 (min)

Specific Gravity

3.4 ± 0.5

Hardness (Shore A)

93 ± 5

Operating Temp.

-30 to 90

Ordering Size Option, mm

S3 : 210 x 300 (A4 size)

Customer Support

Datasheet
