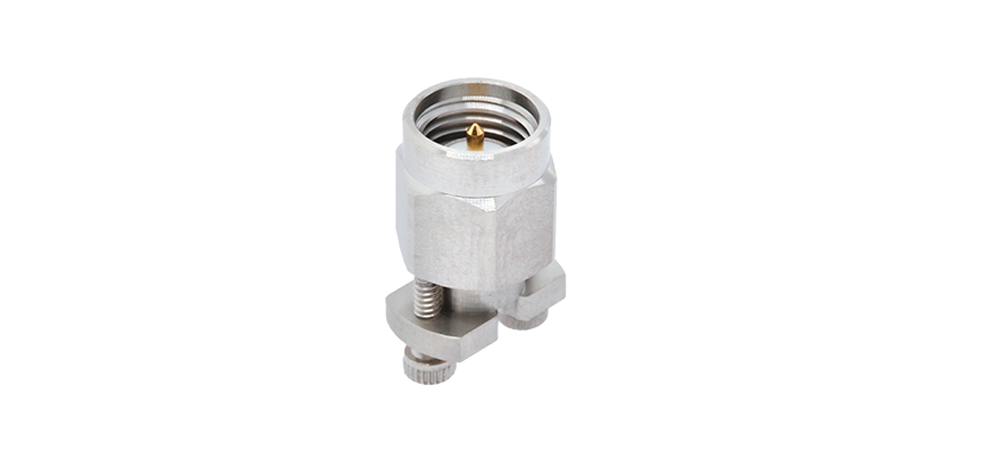

Vertical Launch Connector

Part No: VC06MS002

SMA, Male, 26.5 GHz, Solderless, Microstrip PCB type

RF Series

SMA

Frequency, [GHz]

26.5

Gender

Plug [Male]

Orientation

Straight

Coupling

Threaded

Detent

Mounting Type

Vertical

Body Type

Family

Solderless

Body Finish

Passivated

Body Material

Stainless Steel

Operating Temp.

-40°C to +125°C

Remark 1

Microstrip type

Remark 2

Remark 3
