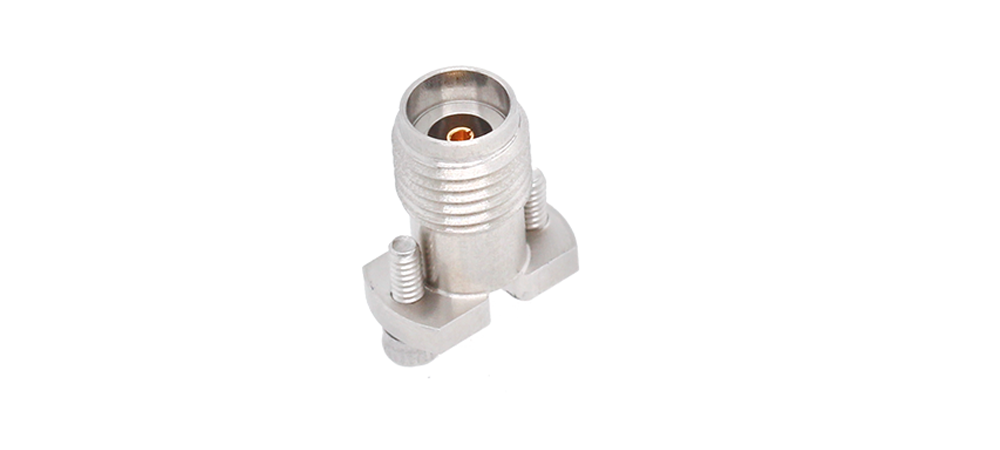

Vertical Launch Connector

Part No: VC03FS002

2.92 mm, Female, 40 GHz, Solderless, Microstrip PCB type

RF Series

2.92mm

Frequency, [GHz]

40

Gender

Jack [Female]

Orientation

Straight

Coupling

Threaded

Detent

Mounting Type

Vertical

Body Type

Family

Solderless

Body Finish

Passivated

Body Material

Stainless Steel

Operating Temp.

-40°C to +125°C

Remark 1

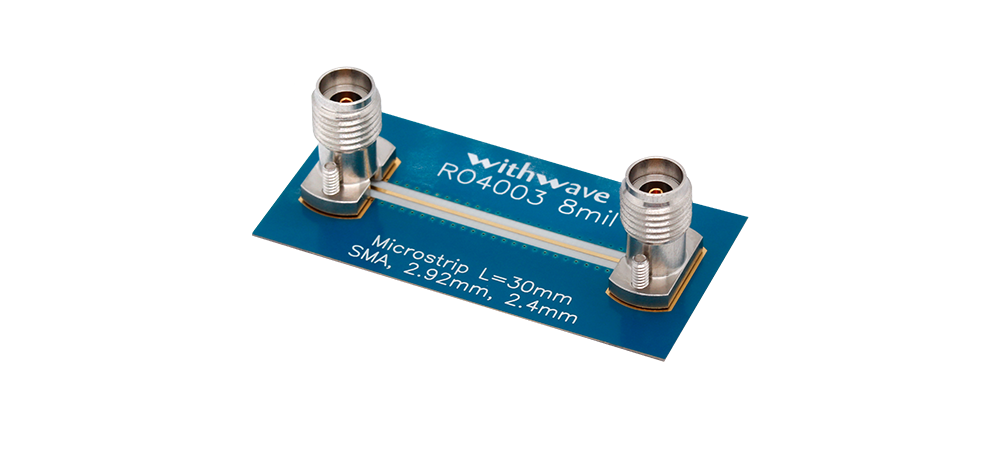

Microstrip type

Remark 2

Remark 3
