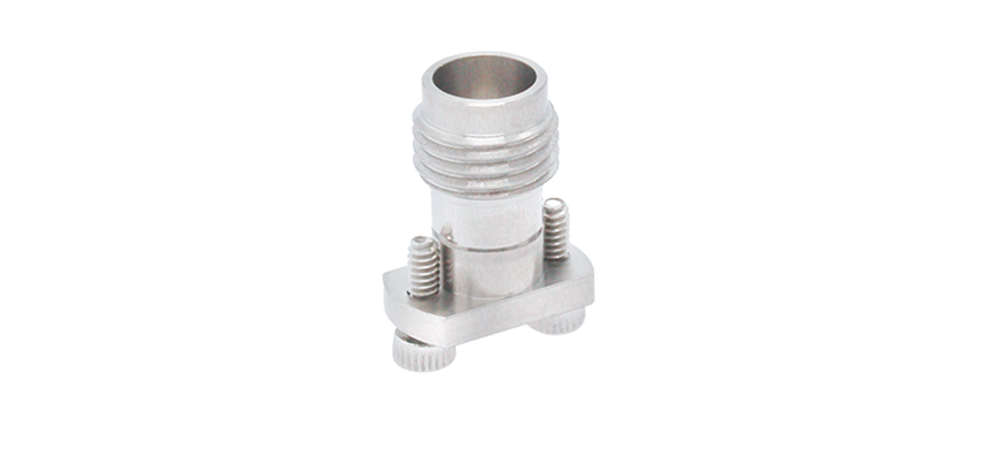

Vertical Launch Connector

Part No: VC01FS001

1.85 mm, Female, 67 GHz, Solderless, Stripline PCB type

RF Series

1.85mm

Frequency, [GHz]

67

Gender

Jack [Female]

Orientation

Straight

Coupling

Threaded

Detent

Mounting Type

Vertical

Body Type

Family

Solderless

Body Finish

Passivated

Body Material

Stainless Steel

Operating Temp.

-40°C to +125°C

Remark 1

Stripline type

Remark 2

Remark 3
