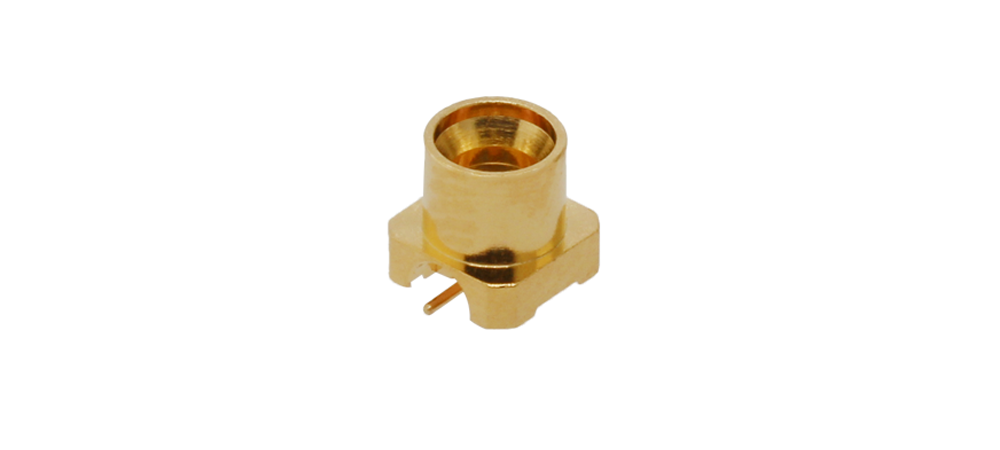

PCB Mount Connector

Part No: ST17MS004

SMPM, Male, 67 GHz, Smooth bore type

RF Series

SMPM

Frequency, [GHz]

67

Gender

Plug [Male]

Orientation

Straight

Coupling

Push-On

Detent

Smooth Bore

Mounting Type

Surface

Body Type

Family

Body Finish

Gold

Body Material

Brass

Operating Temp.

-40°C to +125°C

Remark 1

SMT type

Remark 2

Insulator : LCP

Remark 3
