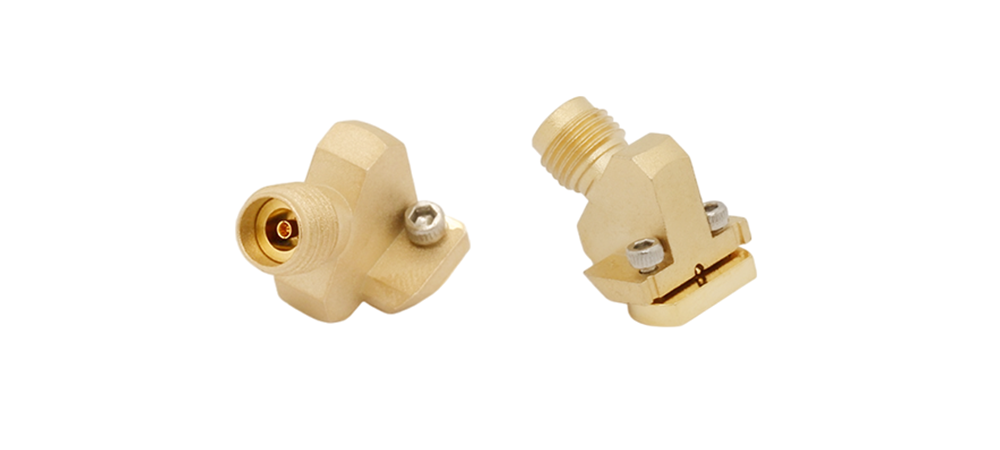

45 degree Connector, 2.92 mm (F)

Part No: AS03FS001

45 degree 2.92 mm, Female, 40 GHz, PCB Type

RF Series

2.92mm

Frequency, [GHz]

40

Gender

Jack [Female]

Orientation

45°

Coupling

Threaded

Detent

Mounting Type

Surface

Body Type

Family

Solderless

Body Finish

Gold

Body Material

Brass

Operating Temp.

-40°C to +125°C

Remark 1

Body: Brass with Gold Plated

Remark 2

Center: Contact BeCu with Gold Plated

Remark 3

Dielectric: Ultem1000
