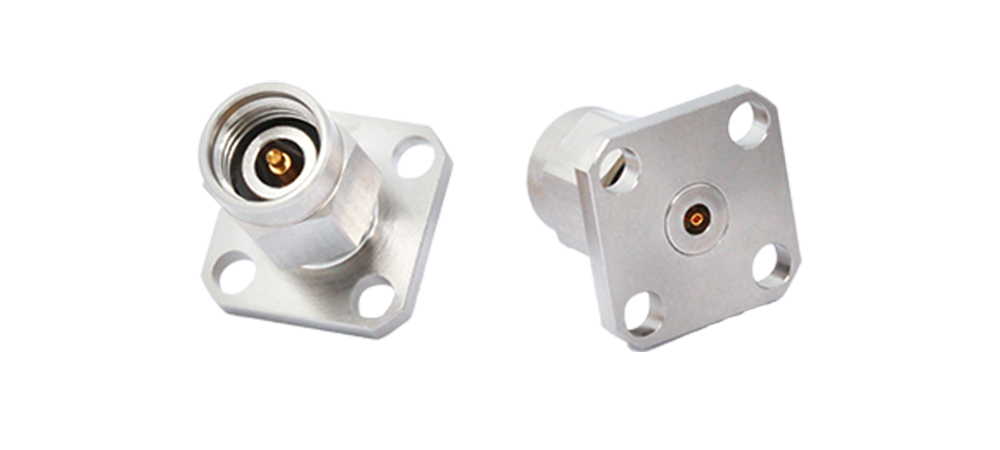

Panel Mount connector

Part No: PM03MS031

2.92 mm, Male, 40 GHz, 4Hole SQ, 0.500 inch, Accept Pin 0.012 inch

RF Series

2.92mm

Frequency, [GHz]

40

Gender

Plug [Male]

Orientation

Straight

Coupling

Threaded

Detent

Mounting Type

Panel

Body Type

4 Hole

Family

Body Finish

Passivated

Body Material

Stainless Steel

Operating Temp.

-40°C to +125°C

Remark 1

Accept Pin Dia. : 0.012”

Remark 2

Remark 3
