Calibration Kits

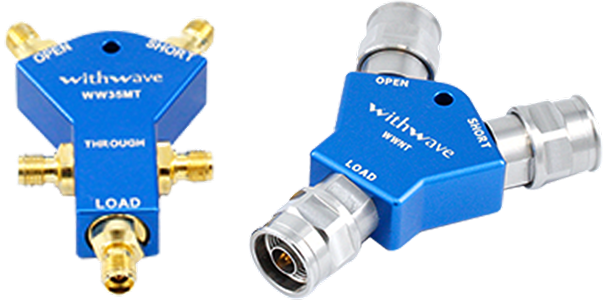

WithWave’s compact Calibration Kits offer excellent performance characteristics and are specially designed
for fine-tuning in production environments and quality testing facilities using 50 ohms N-type and 3.5mm
connectors up to 6 GHz and 9 GHz, respectively.
This Cal. Kit includes all needed calibration standards (Open, Short, Load, and through) in one unit, making
it the best solution available for ease of use in VNA calibration, especially in the field.
Features
• DC to 6 GHz (N-type) & 9 GHz (3.5 mm)
• Standard Kit included Open-Short-Load and Thru
• Return Loss (Load): < -38 dB
• Phase deviation (Open • Short): < 1.5 degrees
• 50 Ohms
Applications
• Vector Network Analyzer, Full 2-port Calibration
• Test & Measurement
• Precision Calibration
Products List
Calibration Kits
| Part Number | Configuration | Freq. High [GHz] | Return Loss Min. [dB] | Phase Deviation Max. [deg] | Connector |
|---|---|---|---|---|---|
| WWNT(M) | 3-in-1 | 6 | 38 | 1.5 | N-Type (M) |
| WWNT(M)-8G | 3-in-1 | 8 | 37 | 1.5 | N-Type (M) |
| WWNT(F) | 3-in-1 | 5 | 38 | 1.5 | N-Type (F) |
| WW35M(M) | 3-in-1 | 9 | 38 | 1.5 | 3.5 mm (M) |
| WW35M(F) | 3-in-1 | 9 | 38 | 1.5 | 3.5 mm (F) |
Product List
3.5mm Calibration All-in-one set
Features
-
DC to 9 GHz
-
Standard kit included 3.5 mm (Female • Male) Open-Short-Load-Through
-
Torque Wrench
-

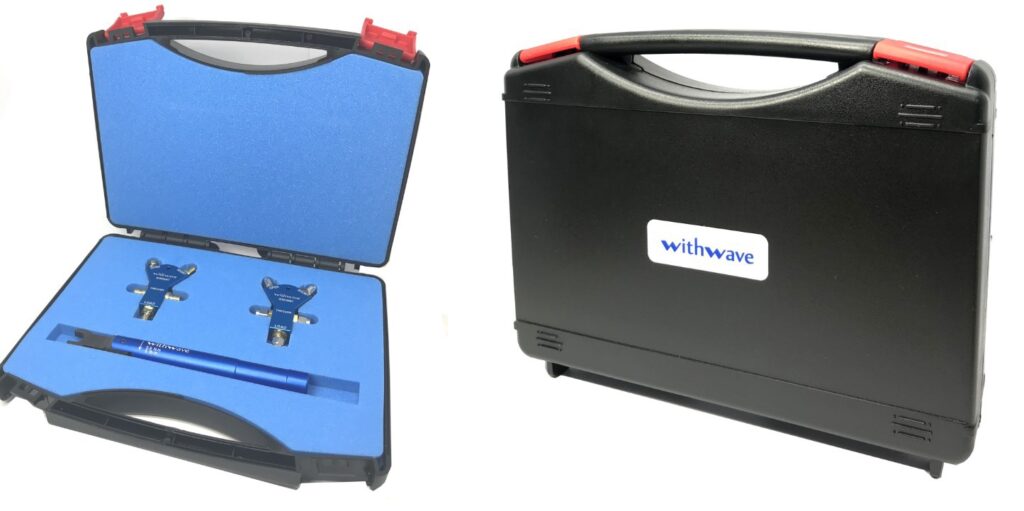

Hand carry case
-
Please visit the "Contact Us" page for inquiries.
| Including Parts | Description | Q'ty |
|---|---|---|
| WW35MT(F) | Calibration kit included 3.5 mm (Female) Open-Short-Load-Through | 1 EA |
| WW35MT(M) | Calibration kit included 3.5 mm (Male) Open-Short-Load-Through | 1 EA |
| TW-01 | Torque Wrench (8 mm, 0.9 N·m) | 1 EA |
