W-Test_Precision Phase Stable Test Cable (145 GHz)

Part No: WT145-DF1DF1-6inch

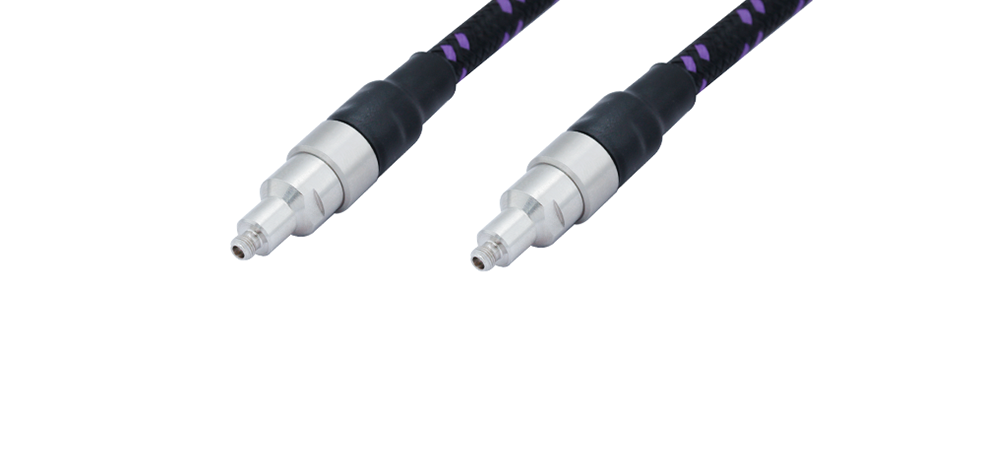

WT145 Cable Assembly, 145 GHz 0.8mm(F), 0.8mm(F), 6inch

  • W-Test Cable Assemblies are complete line of high precision flexible microwave cable assemblies, specially for stable phase testing.
  • These WT145 Cable Assemblies are designed by excellent microwave interconnection technologies and have good phase and amplitude stability up to 145 GHz
  • It is claimed to have excellent insertion loss, high phase/amplitude stability in relation to temperature.

Conn (#1)

0.8mm (F)

Body (#1)

Straight

Coupling (#1)

Threaded

Termination (#1)

Solder

Conn (#2)

0.8mm (F)

Body (#2)

Straight

Coupling (#2)

Threaded

Termination (#2)

Solder

Series (Cable Type)

W-Test Series

Insertion Loss

25.54 dB / 1.0 meter @ 145 GHz

VSWR (:1)

1.65 Max @ 145 GHz

Amplitude / Phase Stability

<+/- 0.6 dB
<+/- 23 degree

Center Conductor

Shielding Effectiveness

< -90 dB

Voltage Withstanding

350 V,DC

Cable Diameter

6.40 mm

Operating Temp.

-40 ~ +85 ℃
Adhesive shrink tube

Remark 1

P/N : WT145-DF1DF1-6inch-T
-40 ~ +125 ℃
Non-adhesive shrink tube

Remark 2

Armour applied

Remark 3

Design Assistance

Drawing
Drawing

Customer Support

Datasheet
Contact us
Contact us
DigiKey
DigiKey
