W-Test_Precision Phase Stable Test Cable (67 GHz)

Part No: WT110-WM1VM1-12inch

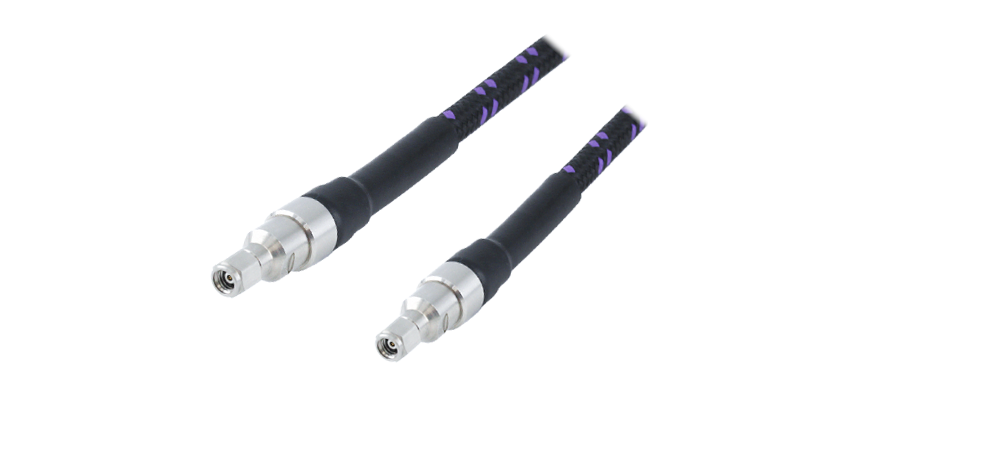

WT110 Cable Assembly, 67 GHz, 1.0mm(M), 1.85mm(M), 12inch

  • The measurement condition: Test at 145 GHz, 1 meter, 50 ohms
  • The Phase Matched type can be supplied in “one pair (2 units) within 1•2•5 [pS] options.
  • Please describe the required length or connectors in the message box.

Conn (#1)

0.8mm (m)

Body (#1)

Straight

Coupling (#1)

Threaded

Termination (#1)

Solder

Conn (#2)

0.8mm (m)

Body (#2)

Straight

Coupling (#2)

Threaded

Termination (#2)

Solder

Series (Cable Type)

W6 Series

Insertion Loss

26.4 dB, Typ @ 1.0 meter
4.5dB, Typ @ 0.5 meter

VSWR (:1)

1.65 Max @ 145 GHz, 26.4 dB RL

Amplitude / Phase Stability

0.6 dB / 25 deg, Max

Center Conductor

Silver Plated Copper

Shielding Effectiveness

90 dB, Min

Voltage Withstanding

350 Vdc

Cable Diameter

1.30 mm

Operating Temp.

-45 ~ +125 ℃
Non-adhesive shrink tube

Remark 1

Low loss application

Remark 2

Precision Test * 테스트

Remark 3

Armour applied * 테스트

Design Assistance

Customer Support

Datasheet
Contact us
Contact us
