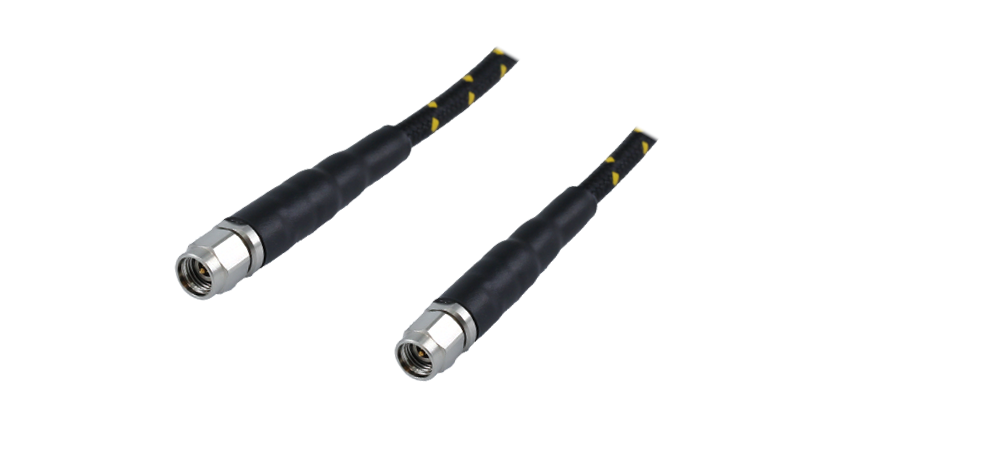

W7 Series_Flexible Armored Cable Assembly _40 GHz

Part No: W701-KM1KM1-12inch

W701 Cable Assembly, 40 GHz, 2.92mm(M), 2.92mm(M), 12inch

  • W7 Series are complete line of high performance flexible microwave cable assemblies.
  • Specially, Flexible Armored W701 Series have low density PTFE structure to achieve velocity propagation of 76 % and good phase and amplitude stability performance.
  • They have excellent RF performance up to 26.5, 40 GHz with SMA, 2.92 mm connectors, respectively.

Conn (#1)

2.92mm (M)

Body (#1)

Straight

Coupling (#1)

Threaded

Termination (#1)

Solder

Conn (#2)

2.92mm (M)

Body (#2)

Straight

Coupling (#2)

Threaded

Termination (#2)

Solder

Series (Cable Type)

W7 Series

Insertion Loss

4.33 dB / 1.0 meter @ 35 GHz

VSWR (:1)

1.30 Max @ 40 GHz

Amplitude / Phase Stability

<±0.1 dB (up to 40 GHz) /
<±3.0 degree (up to 26.5 GHz)
<±5.5 degree (up to 40 GHz)

Center Conductor

Shielding Effectiveness

< -90 dB

Voltage Withstanding

Cable Diameter

4.40 mm

Operating Temp.

-40 ~ +85 ℃
Adhesive shrink tube

Remark 1

P/N : W701-KM1KM1-12inch-T
-40 ~ +125 ℃
Non-adhesive shrink tube

Remark 2

Remark 3
