W6 Series_High Performance Cable Assembly(145 GHz)

Part No: W602-DM1DF1-24inch

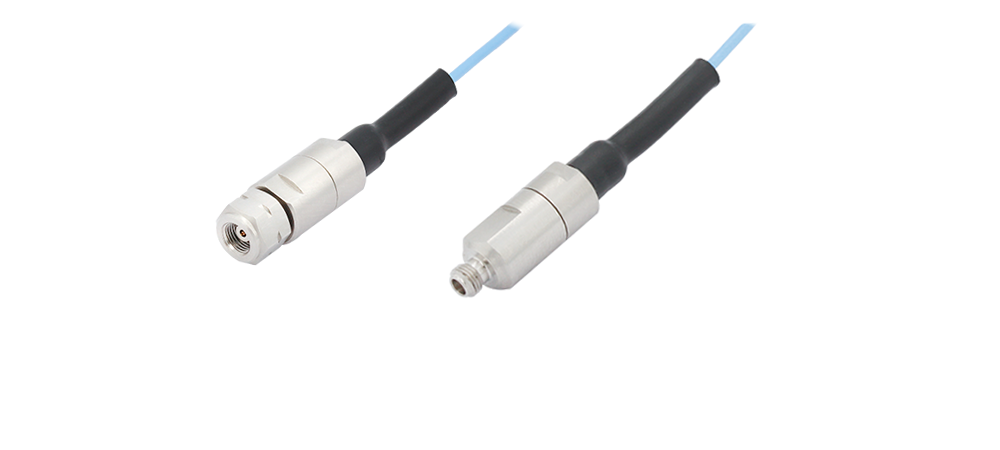

W602 Cable Assembly, 145 GHz, 0.8mm(M), 0.8mm(F), 24inch

  • W6 Series are complete line of high performance flexible microwave cable assemblies. Specially, W602 Series
    have solid PTFE structure to achieve velocity propagation of 70 %.
  • These series have excellent RF performance up to 145 GHz with 0.8 mm Connectors.

Conn (#1)

0.8mm (M)

Body (#1)

Straight

Coupling (#1)

Threaded

Termination (#1)

Solder

Conn (#2)

0.8mm (F)

Body (#2)

Straight

Coupling (#2)

Threaded

Termination (#2)

Solder

Series (Cable Type)

W6 Cable Series

Insertion Loss

26.40 dB / 1.0 meter @ 145 GHz

VSWR (:1)

1.65 Max @ 145 GHz

Amplitude / Phase Stability

<+/- 0.6 dB
<+/- 25 degree

Center Conductor

Shielding Effectiveness

<-90 dB

Voltage Withstanding

350 V,DC

Cable Diameter

1.30 mm

Operating Temp.

-40 ~ +85 ℃
Adhesive shrink tube

Remark 1

P/N : W602-DM1DF1-6inch-T
-40 ~ +125 ℃
Non-adhesive shrink tube

Remark 2

Remark 3
