W5 Series Low loss Flexible Cable Assembly (W503) _26.5 GHz

Part No: W503-SM1SM1-12inch

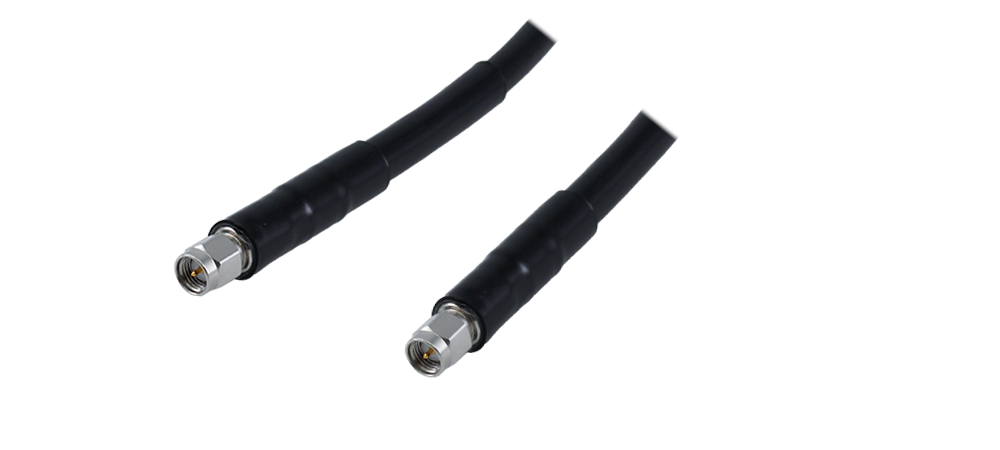

W503 Cable Assembly, 26.5 GHz, SMA(M), SMA(M), 12inch

  • W2 Series are complete line of high performance flexible microwave cable assemblies.
  • Specially, W205 Series have low density PTFE structure to achieve velocity propagation of 74 % and excellent phase and amplitude stability performance .
  • W205 series have excellent RF performance up to 50 & 67 GHz with 2.4 mm & 1.85 mm connectors, respectively.

Conn (#1)

1.85mm (M)

Body (#1)

Straight

Coupling (#1)

Threaded

Termination (#1)

Solder

Conn (#2)

2.92mm (M)

Body (#2)

Straight

Coupling (#2)

Threaded

Termination (#2)

Solder

Series (Cable Type)

W2 Series

Insertion Loss

VSWR (:1)

1.30 Max @ 40 GHz

Amplitude / Phase Stability

<± 0.03 dB (up to 40 GHz)
<± 0.05 dB (up to 50 GHz)
<±3 degree (up to 40 GHz)
<± 5 degree (up to 50 GHz)

Center Conductor

Shielding Effectiveness

< -90 dB

Voltage Withstanding

Cable Diameter

2.40 mm

Operating Temp.

-40 ~ +85 ℃
Adhesive shrink tube

Remark 1

P/N : W205-VM1KM1-6inch-T
-40 ~ +125 ℃
Non-adhesive shrink tube

Remark 2

Remark 3

Design Assistance

Customer Support

Datasheet
Contact us
Contact us
