Right Angle Cable Assemblies W400(20G) _DC to 18 GHz

Part No: W400(20G)-SMR1SM2-6inch

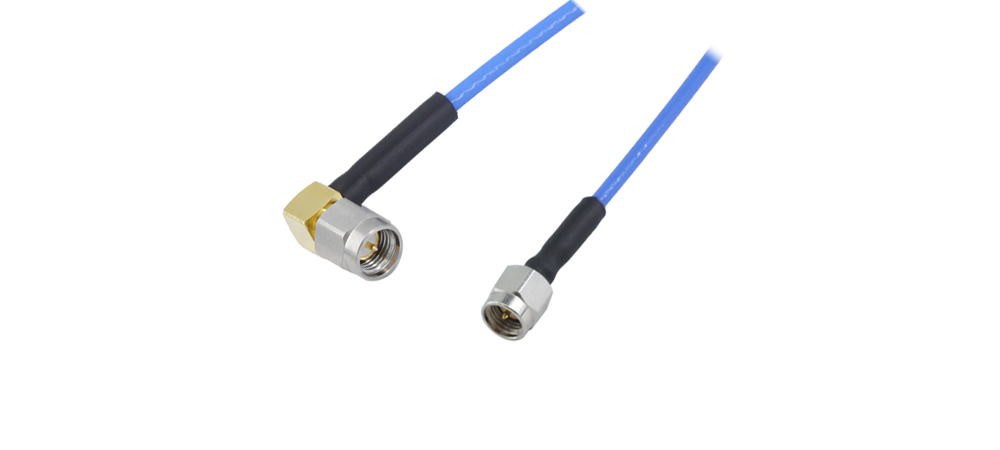

W400(20G) Cable Assembly, 18 GHz, SMA(M) R/A, SMA(M) ST, 6inch

  • W4 Series are complete line of high performance flexible microwave cable assemblies.
  • The velocity propagation of W400(20G) Cable is 70 % and They have good insertion & return loss.
  • This Cable Assemblies with SMA Right Angle Connectors have excellent RF performance up to 18 GHz.

Conn (#1)

SMA (M)

Body (#1)

Right Angle

Coupling (#1)

Threaded

Termination (#1)

Conn (#2)

SMA (M)

Body (#2)

Straight

Coupling (#2)

Threaded

Termination (#2)

Solder

Series (Cable Type)

W4 Series

Insertion Loss

VSWR (:1)

1.45 Max @ 18 GHz

Amplitude / Phase Stability

Center Conductor

Shielding Effectiveness

<-100 dB

Voltage Withstanding

Cable Diameter

2.69 mm

Operating Temp.

-40 ~ +85 ℃
Adhesive shrink tube

Remark 1

P/N : W400(20G)-SMR1SM2-6inch-T
-40 ~ +125 ℃
Non-adhesive shrink tube

Remark 2

Remark 3
