W1 Series_Ultra Low loss test cable_26.5 GHz

Part No: W100-SM1SF1-6inch

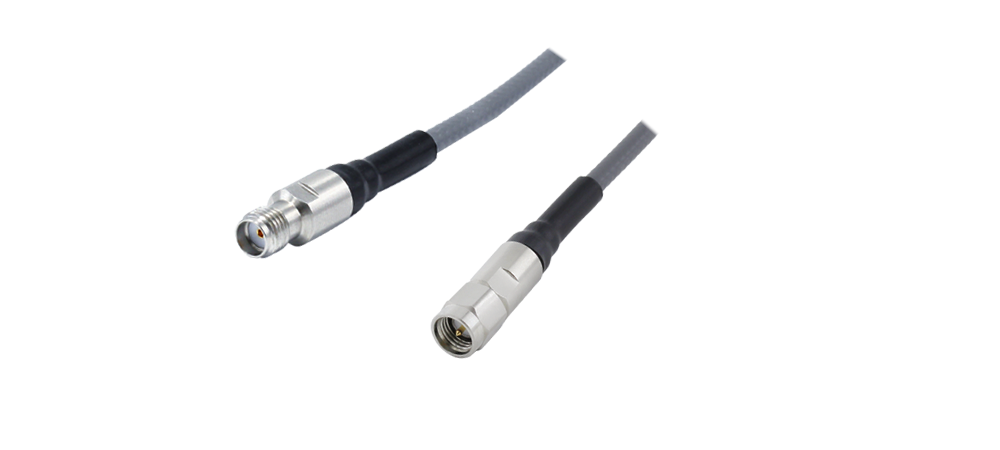

W100 Cable Assembly, 26.5 GHz, SMA(M), SMA(F), 6inch

  • W1 Series are complete line of high performance flexible microwave cable assemblies.
  • The W1 have extruded Low density PTFE dielectric structure to allow low dielectric constant as close as air up to 1.3 and achieve fast velocity propagation of 83 %.
  • W1 Series have the lowest insertion loss available to 18, 26.5, 35, 40 GHz.
  • These low loss cable assemblies are extremely versatile, moderately priced and fit a variety of applications.

Conn (#1)

2.92mm (M)

Body (#1)

Straight

Coupling (#1)

Threaded

Termination (#1)

Solder

Conn (#2)

2.92mm (M)

Body (#2)

Straight

Coupling (#2)

Threaded

Termination (#2)

Solder

Series (Cable Type)

W1 Series

Insertion Loss

VSWR (:1)

1.30 Max @ 40 GHz

Amplitude / Phase Stability

Center Conductor

Shielding Effectiveness

< -90 dB

Voltage Withstanding

1000 V,DC

Cable Diameter

3.60 mm

Operating Temp.

-40 ~ +85 ℃
Adhesive shrink tube

Remark 1

P/N : W100-KM2KM2-6inch-T
-40 ~ +125 ℃
Non-adhesive shrink tube

Remark 2

Remark 3

Design Assistance

Customer Support

Datasheet
Contact us
Contact us
