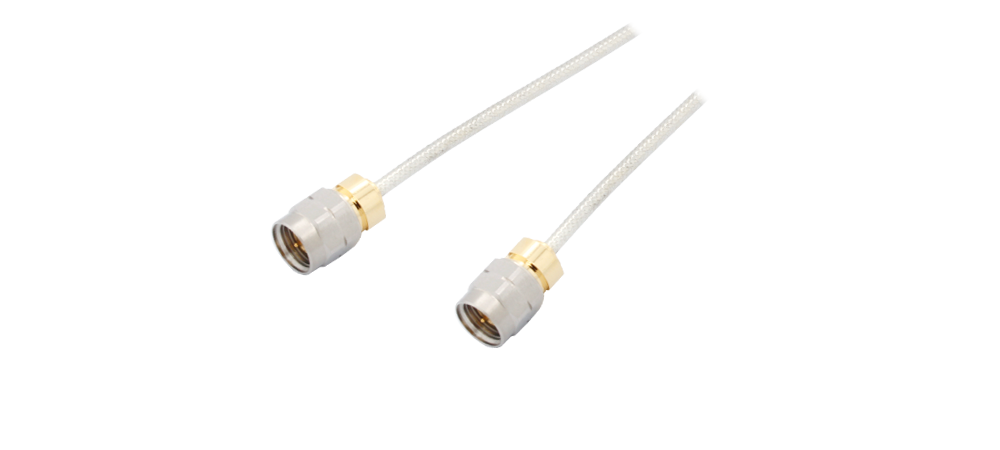

Microwave Semi-Rigid & Flexible Cable Assembly DC to 50 GHz

Part No: SR085-2M12M1-4inch

SR085 Cable Assembly, 50 GHz, 2.4mm(M), 2.4mm(M), 4inch

  • WithWave provides Microwave Semi-rigid & flexible cable assemblies with 0.047’’, 0.085’’ diameter for various kinds of microwave interconnection applications up to 40 & 50 GHz.
  • These cable assemblies are suitable for Telecommunication Systems, Module to Module interconnections.

Conn (#1)

2.4mm (M)

Body (#1)

Straight

Coupling (#1)

Threaded

Termination (#1)

Solder

Conn (#2)

2.4mm (M)

Body (#2)

Straight

Coupling (#2)

Threaded

Termination (#2)

Solder

Series (Cable Type)

Microwave Semi-Rigid Cable Assembly

Insertion Loss

0.81 dB / 0.1 meter @ 50 GHz

VSWR (:1)

1.40 Max @ 50 GHz

Amplitude / Phase Stability

Center Conductor

Shielding Effectiveness

100 dB

Voltage Withstanding

Cable Diameter

2.20 mm

Operating Temp.

-40 ~ +125 ℃
No shrink tube

Remark 1

Remark 2

Remark 3
