High Performance Cable Assemblies ∅.047 Cable types (Flexible, Semi-Rigid, Semi-Flexible)

Part No: FX047-VF1VF1-12inch

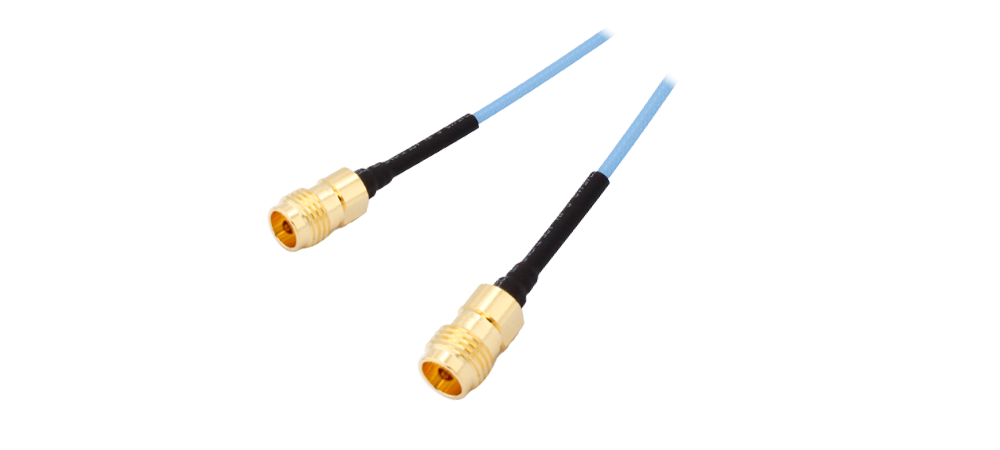

FX047 Cable Assembly, 67 GHz, 1.85mm(F), 1.85mm(F), 12inch

  • Withwave offers High Performance Cable Assemblies with 0.047’’cable diameter (Flexible, Semi-Rigid & Semi-Flexible) for various kinds of interconnection solutions such as High Speed Testing, Short range and Telecommunication applications.

Conn (#1)

1.85mm (F)

Body (#1)

Straight

Coupling (#1)

Threaded

Termination (#1)

Solder

Conn (#2)

1.85mm (F)

Body (#2)

Straight

Coupling (#2)

Threaded

Termination (#2)

Solder

Series (Cable Type)

High Performance Cable Assemblies

Insertion Loss

1.31 dB / 0.1 meter @ 67 GHz

VSWR (:1)

1.50 Max @ 67 GHz

Amplitude / Phase Stability

Center Conductor

Shielding Effectiveness

<-90 dB

Voltage Withstanding

Cable Diameter

1.53 mm

Operating Temp.

-55 ~ +125 ℃
Non-adhesive shrink tube

Remark 1

Remark 2

Remark 3
